Shimano Front Derailleur Dura Ace Di2

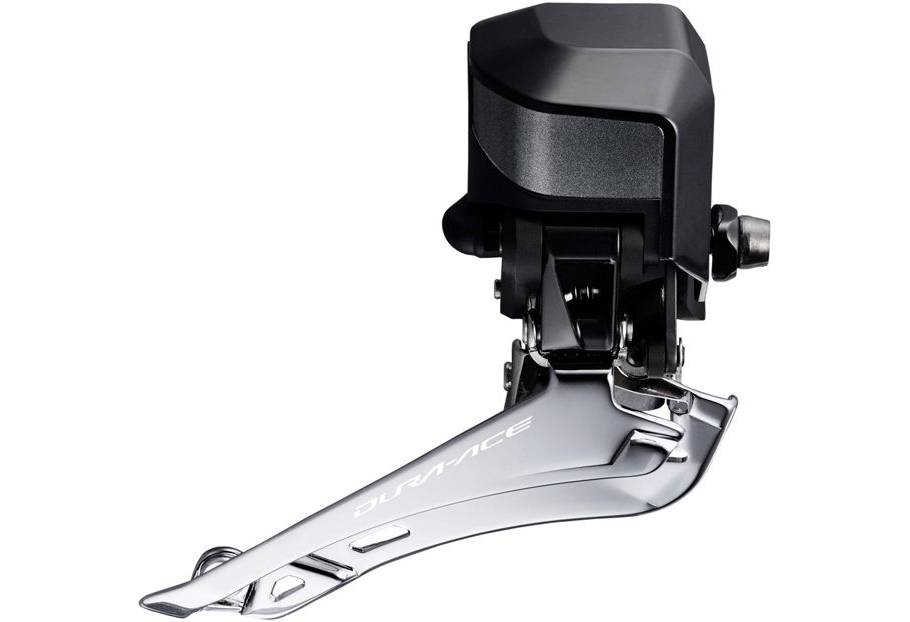

The Dura-Ace Di2 FD-9070 Front Derailleur by Shimano - Fast and precise shifting

Shimano Dura-Ace Di2 FD-9070 is an electronic front derailleur for 2x11-speed drivetrains that performs fast, precise and very quiet shifting operations at the touch of a button. Embedded in the E-Tube system, it automatically trims and prevents chain grinding. FD-9070 is made of carbon, titanium and aluminium, which allows a sensationally low weight of only 110 grams.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of batteries and electrical equipment can be found here.

Specifications:

Series: Dura-Ace Di2 9070
Application: Road, Triathlon & Time Trial
Gearing: 2x (combined w/ 11-speed)
Chainstay Angle: 61-66°
Chainline: 43.5 mm
Chainring Size (max.): 50-56 teeth
Capacity: 16 teeth
Movement: down-swing
Attachment: braze-on
Compatibility: HG-EV 11-speed chains, HG-X11 chains

Technical Information:

Outer Body Material: carbon (CFRP)
Inner Body Material: titanium
Cage Material: aluminium
Number of E-Tube Ports: 1

Features:

- fast, precise, smooth shifting operations
- auto trim function
- supporting screw retains correct position even when pedalling hard
- clamp for frames without braze-on available separately
- four joint bushings
- outer parallelogram plated/painted, cages plates nickel-plated
- E-Tube project ensures firmware updates

Technology:

SEIS
This product uses a technologically innovative, computerised shifting system based on the Di2 concept with the product designation SEIS (Shimano Electronic Intelligent System). The innovative shifting technology of the SEIS continues to be based on the Shimano Index System (SIS), whose outstanding shifting performance has proven itself over many years. The main difference between the systems is that the shifting operation is no longer carried out mechanically but electronically. The shifting process is carried out by simply pressing a button. No effort is required to shift gears, which has significant advantages as the rider always has a firm grip on the handlebars and can concentrate on riding without being distracted by the shifting. The shifting system allows precise and effortless shifting in all situations, even with cold hands or when the rider has fully exerted themselves. In addition, the shifting capacity can no longer be affected by dirty or stretched cables, as the shifting signal is transmitted electronically. The operating keys work in a similar way to mechanical dual-control levers, making it easy to get used to the new system.

E-Tube
E-Tube is a system platform for the Di2 concept (Digital Integrated Intelligence). E-Tube transmits interactive signals and supplies all electronic parts with power via " Plug & Play" connections. E-Tube is resistant to corrosion, expansion and frost and ensures low maintenance. It offers optimal flexibility for your bike. With E-Tube Project you can customise the settings of electronic components and update the firmware via Windows PC, tablet or smartphone. It provides quick and easy access to information on electronic components and provides an instant overview of system status.

Manufacturer Number:

I-FD9070F

Contents:

- 1 x Shimano Dura-Ace Di2 FD-9070 front derailleur
