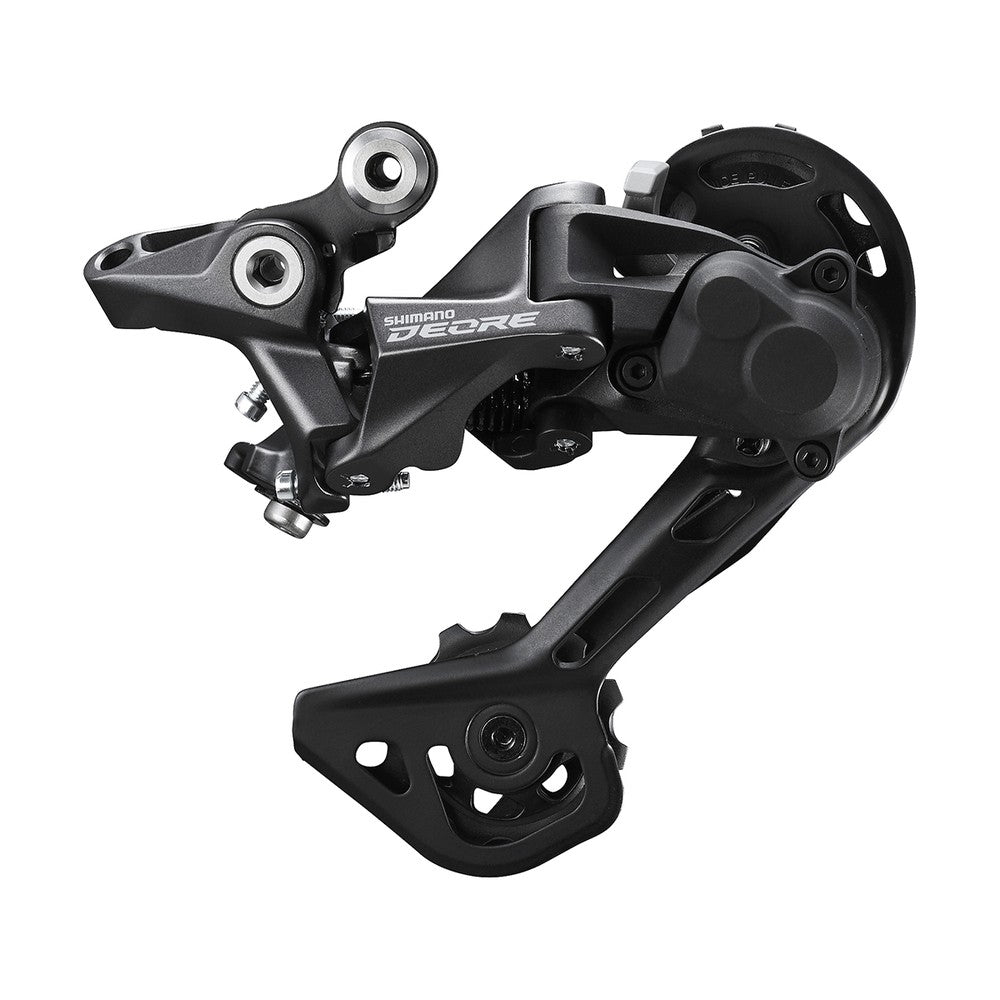

Shimano RD-M5120 Deore Rear Derailleur
ERDM5120SGS
Utilizing the SHIMANO SHADOW RD+ design, the SHIMANO DEORE M5120 rear derailleur delivers consistent MTB shifting performance over rough terrain. The low profile design avoids damage from rocks whiles SHIMANO's chain stabilizing technology reduces chain drop and makes for a quiet drivetrain in all gear positions.
- Stable drivetrain on the trail
- Low-profile design avoids damage from rocks
- Chain stabilizer reduces chain drop, slap and noise
- Silent drivetrain in all gear positions
- Decreased rear derailleur and chain tension in low gear
- Max. low sprocket
- 42T (2x11/10-speed), 46T (1x10-speed)
PRODUCT SPECIFICATIONS
| MODEL NO | RD-M5120-SGS |
|---|---|
| SERIES | DEORE M5100 Series |
| Color | Series color |
| B-Axle_Hollow axle | ✔ |
| B-axle 2_Hollow axle | ✔ |
|---|---|
| Compatible chain | HG-X11 11-speed, HG-X 10-speed |
| Direct attachment (Conventional) | ✔ |
| Direct mount compatible | ✔ |
| Fluoric coated link bushings | 4 |
| Low sprocket_Max. | 46T (1x10-speed), 42T (2x11/2x10-speed) |
| Low sprocket_Min. | 42T |
| Max. front difference | 10T |
| Pulley_Sunken type pulley bolt | ✔ |
| Pulley_Teeth | 11T |
| Pulley cage | SGS |
| Rear speeds | 11/10 |
| Top-Normal spring type_SHADOW RD+ | ✔ |
| Top sprocket_Max. | 11T |
| Top sprocket_Min. | 11T |
| Total capacity | 41T |
