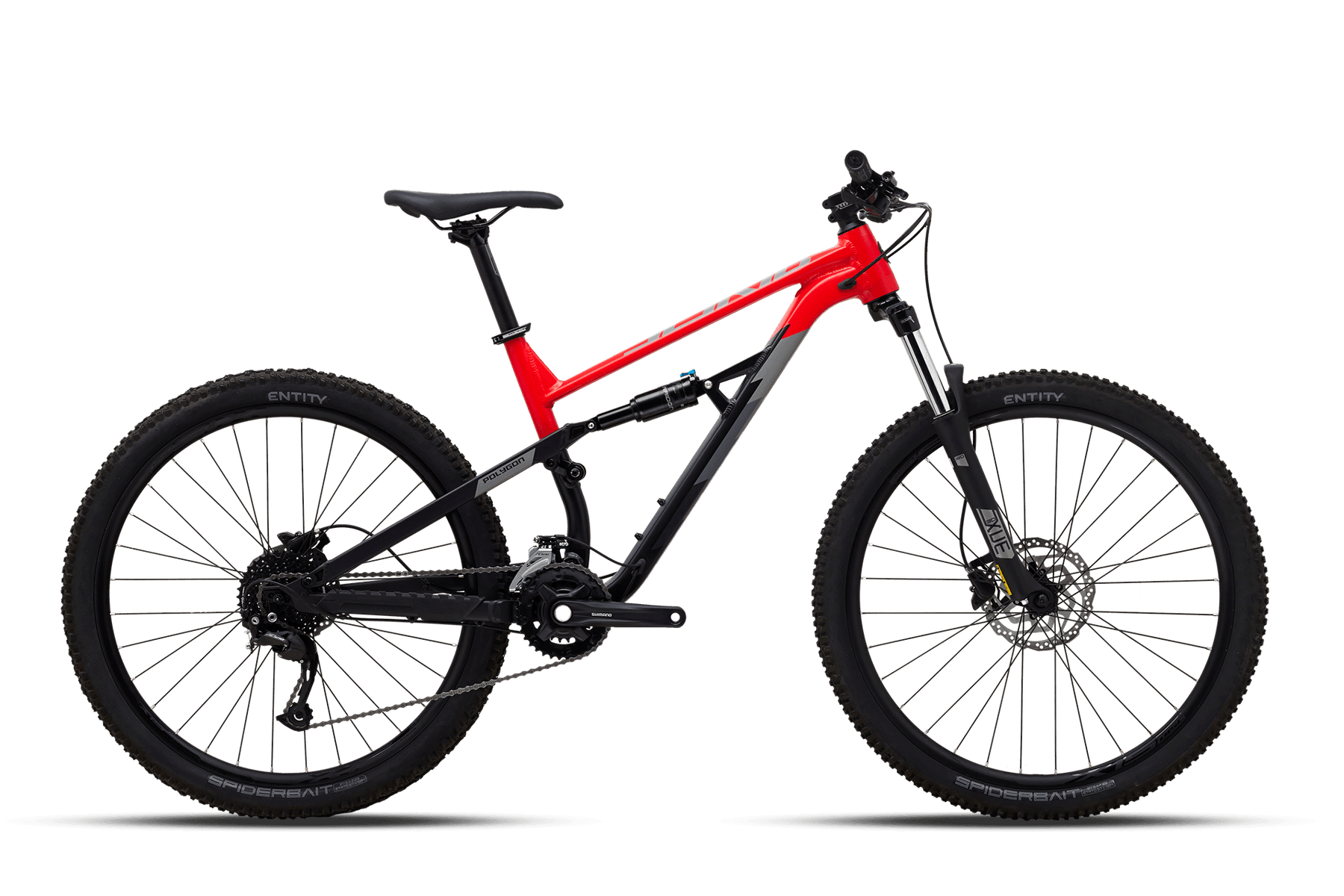

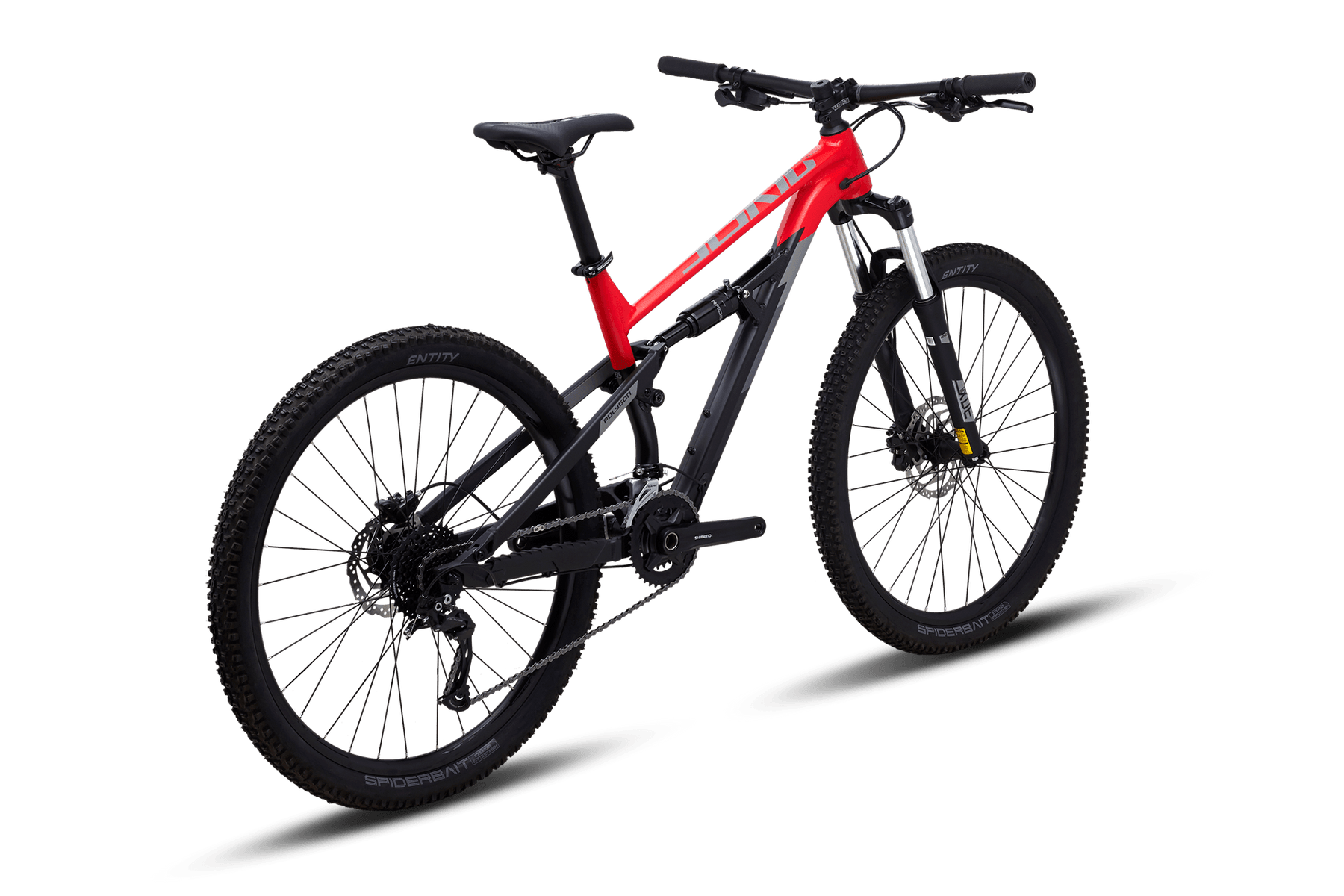

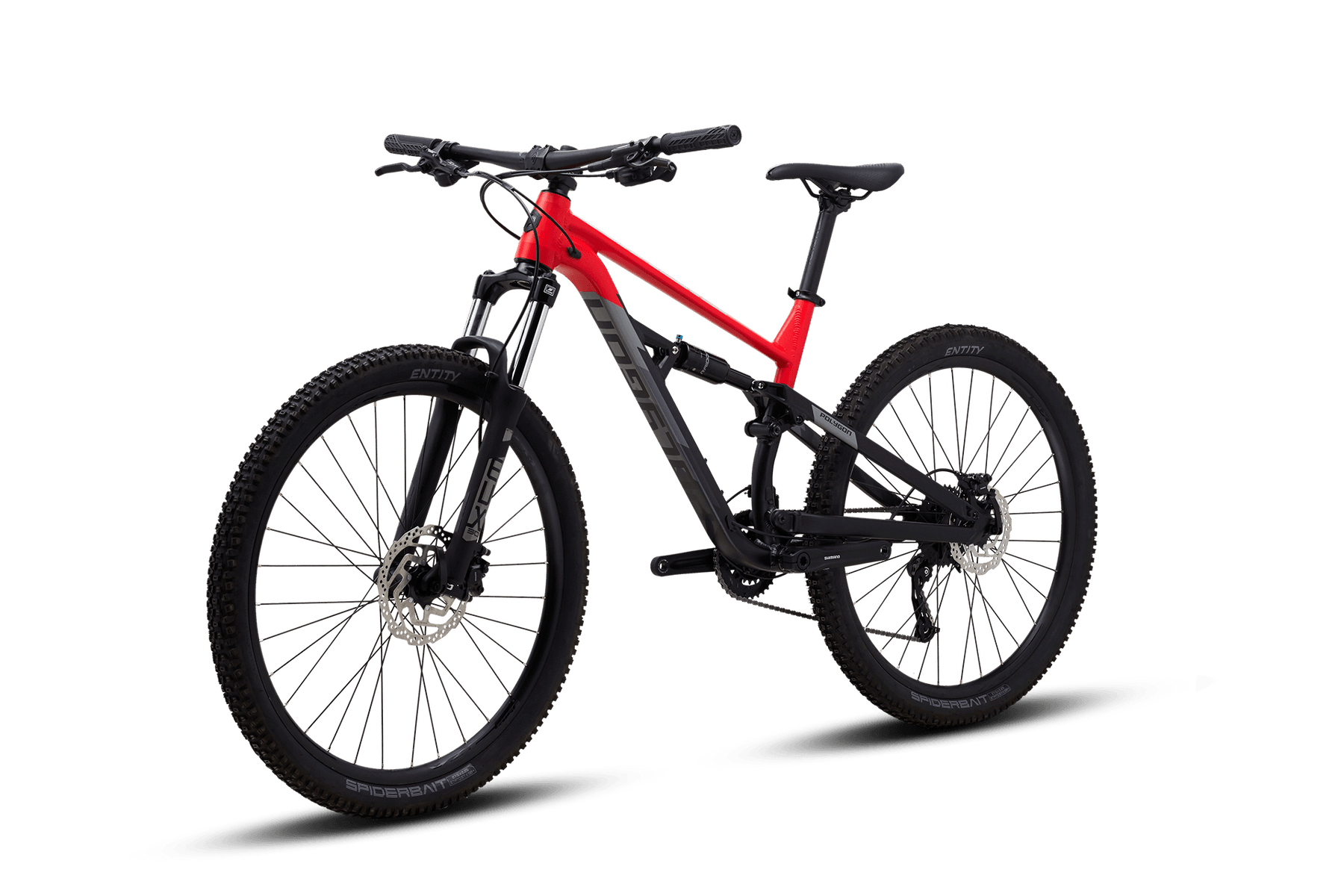

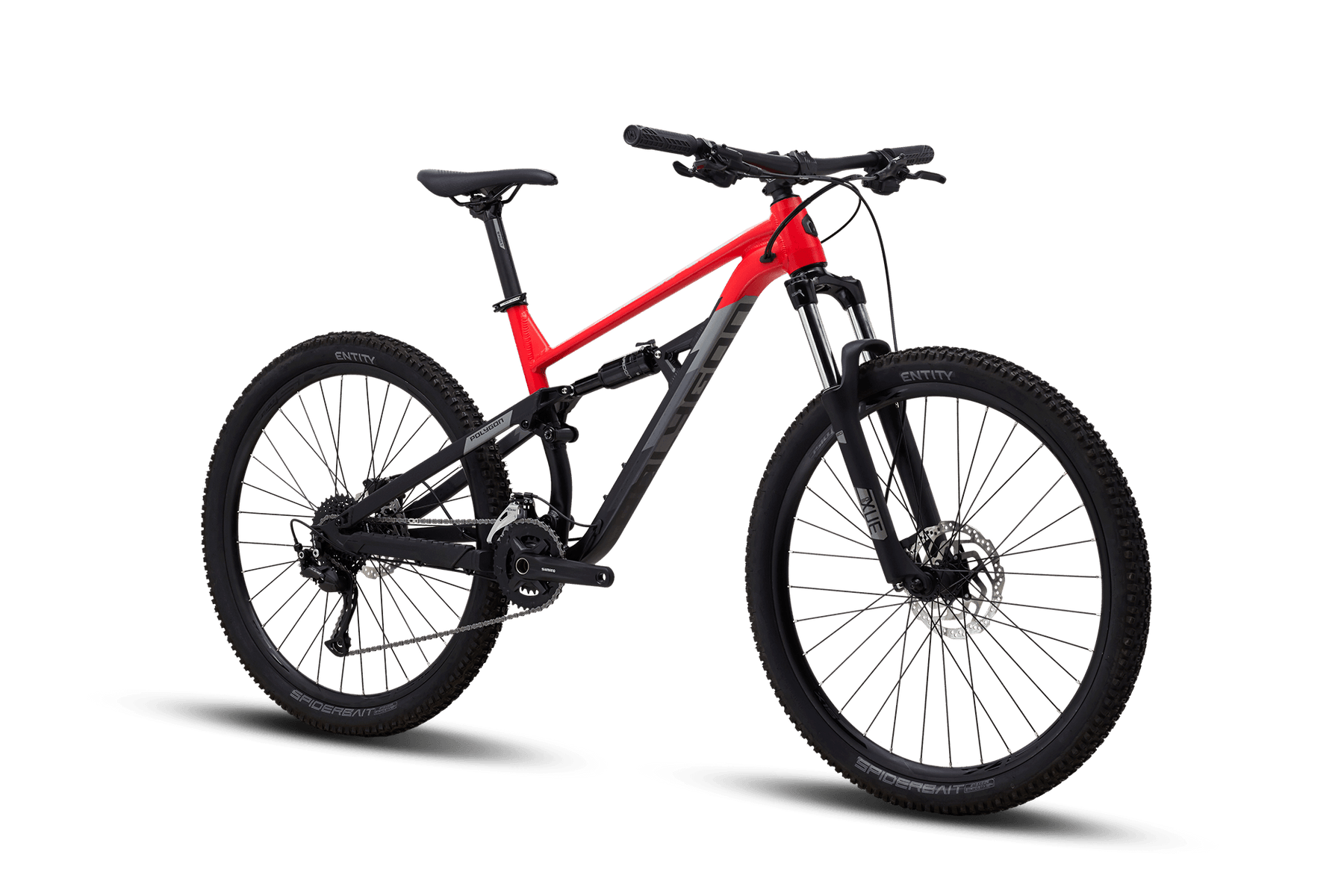

Polygon Siskiu D5 MTB Bicycle (2022)
No reviews
Sign-up for our newsletter for amazing deals and latest news on cycling gear
Siskiu D5 is an all round XC trail full suspension bike that can handle everything from your fun local trails to all day Alpine epics. This upgraded series is built around a light weight, ALX aluminum suspension frame with more modern geometry – offering slacker head tube angle, longer reach, lower BB and shorter chain-stay to boost rider’s performance in climbing or descending, no matter the distance, technicality or gradient. The bikes’ are offered with updated kinematic system, with more optimized anti squat number for better pedaling performance and more progressive suspension ratio. Features with 120mm suspension with a one piece linkage system reducing lateral flex in rear triangle and improving the linear movement and performance of the shock – this series is offered in 27.5 wheel size. The new Siskiu D5 is allowing rider to mount their water bottle on the frame. The all new Siskiu D series is the ideal, fun and reliable ride for your next adventure.
ALX XC TRAIL FRAME |
SUNTOUR XCM HLO, 120MM TRAVEL |
SUNTOUR RAIDON LO AIR, E2E: 190x51MM |
THREADLESS ZERO STACK HEADSET, ZS 44/28.6 | ZS 56/30 |
ENTITY SPORT ALLOY, E: 45MM, B: 31.8MM, R/D: 0DEGREE |
ENTITY SPORT ALLOY, W: 760MM, BB: 31.8MM, R/D: 12MM, B: 0DEGREE |
SHIMANO RD-M3100 DIRECT ATTACH 9-SPEED |
SHIMANO SL-M3100, 2x9-SPEED TRIGGER |
BSA THREADED 68/73MM |
SHIMANO FC-MT210 36/22T TWO PIECE CRANK, 170MM |
SHIMANO CS-HG200 11-36T 9-SPEED |
KMC X9 |
ALLOY CAGE PEDAL W/ REFLECTOR |
SHIMANO MT200 HYDRAULIC DISC BRAKE, ROTOR: FRONT:180MM REAR:160MM CENTER-LOCK |
ALLOY DOUBLE WALL, RIM: ALLOY DOUBLE WALL 584-15 32H FOR TYRE 584-35/68 |
PERFORMANCE TIRE 27.5"x2.25" |
ENTITY VOID SADDLE, ø 7mm |
ENTITY SPORT ALLOY, DXL: 30.9x350MM |
27.5 |
Red/Black |
- |
HEIGHT / cm | 152.5-165 | 162.5-175 | 172.5-185 | 182.5-195 |
---|---|---|---|---|
SIZE | S | M | L | XL |
SISKIU D5 | ✔ | ✔ | ✔ | ✔ |
A | B | C | D | E | F | G | H | I | J | K | L | M | |
Size | Seat Tube Length | Seat Tube Angle | Effective Seat Tube Angle | Head Tube Length | Head Tube Angle | Effective Top Tube | BB Height | BB Offset | Chainstay Length | Wheelbase | Frame Reach | Frame Stack | Standover Height |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
S | 395 | 70 | 75.5 | 102 | 67 | 572.7 | 326 | 27 Drop | 432 | 1133 | 425 | 571.2 | 676 |
M | 435 | 70 | 75.5 | 105 | 67 | 595.1 | 326 | 27 Drop | 432 | 1157 | 445 | 580.4 | 696 |
L | 485 | 70 | 75.5 | 122 | 67 | 617.5 | 326 | 27 Drop | 432 | 1181 | 465 | 589.6 | 729 |
