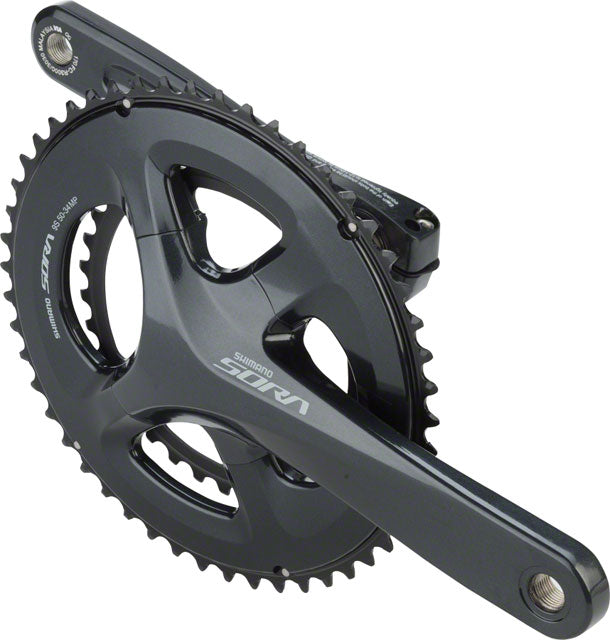

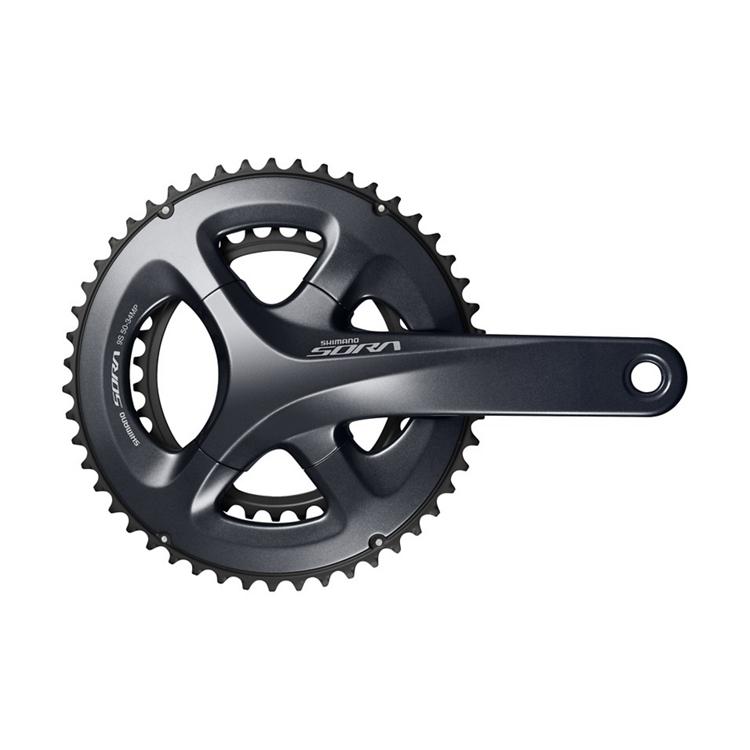

Shimano FC-R3000 Sora Cranksets - 2x9 Speed
EFCR3000CX04X
SHIMANO SORA - Road Crankset 2x9-speed
The SHIMANO SORA 2x9 speed road crank uses a high-end 4-arm design and compact 50-34T chainrings and is available in 165, 170, and 175mm crank arm lengths.
- 4-arm design
- FC-R3000
| MODEL NO | FC-R3000 |
|---|---|
| SERIES | SORA R3000 Series |
| Color | Series color |
| Threaded BB shell width_70mm | ✔ |
| 2-piece crank construction | ✔ |
|---|---|
| Chain line (mm) | 43.5 |
| Chain ring combination | 50-34T |
| Compatible BB type_Outboard | ✔ |
| Compatible chain | HG 9-speed |
| Crank fixing bolt included | ✔ |
| Crank arm length (mm)_165.0 | ✔ |
| Crank arm length (mm)_170.0 | ✔ |
| Crank arm length (mm)_175.0 | ✔ |
| Gear arms | 4 |
| Optional chain guard_Without chain / bash guard | ✔ |
| P.C.D. (mm) | 110 |
| Rear speeds | 9 |
| Recommended BB_Pressfit | BB-RS500-PB |
| Recommended BB_Threaded (normal) | BB-RS500 |
| Threaded BB shell width_68mm | ✔ |
| Q-factor (mm) | 150 |
