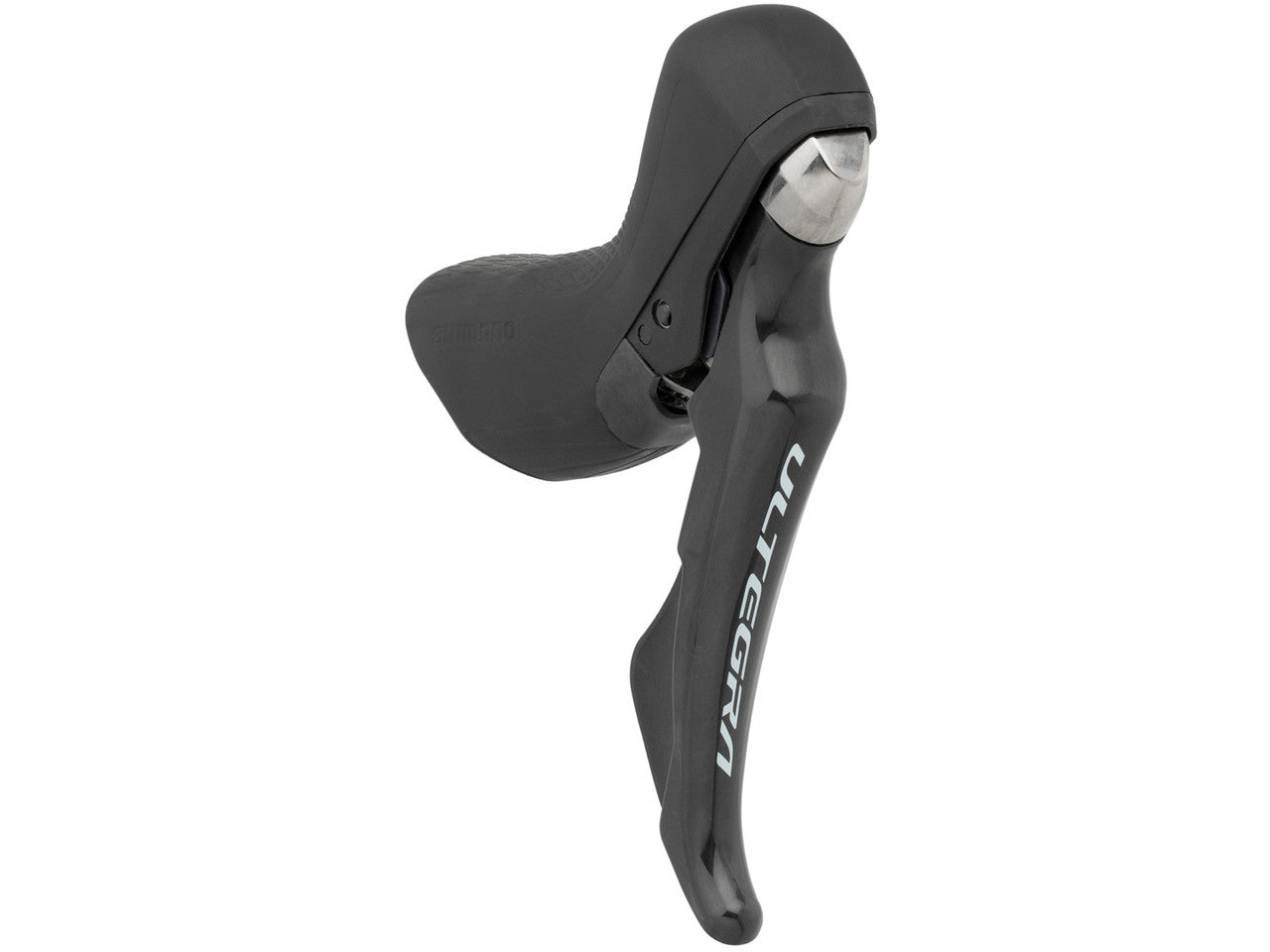

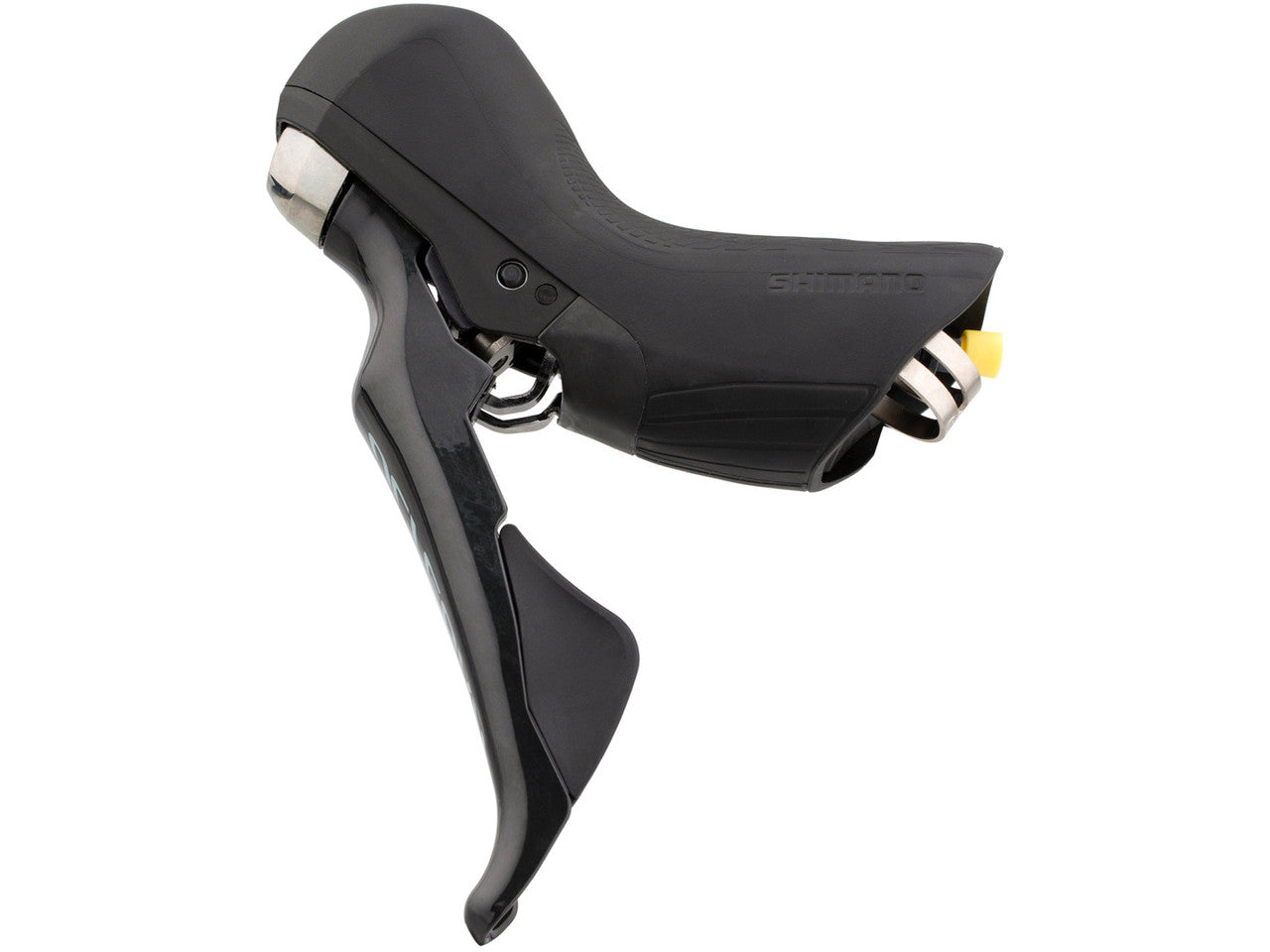

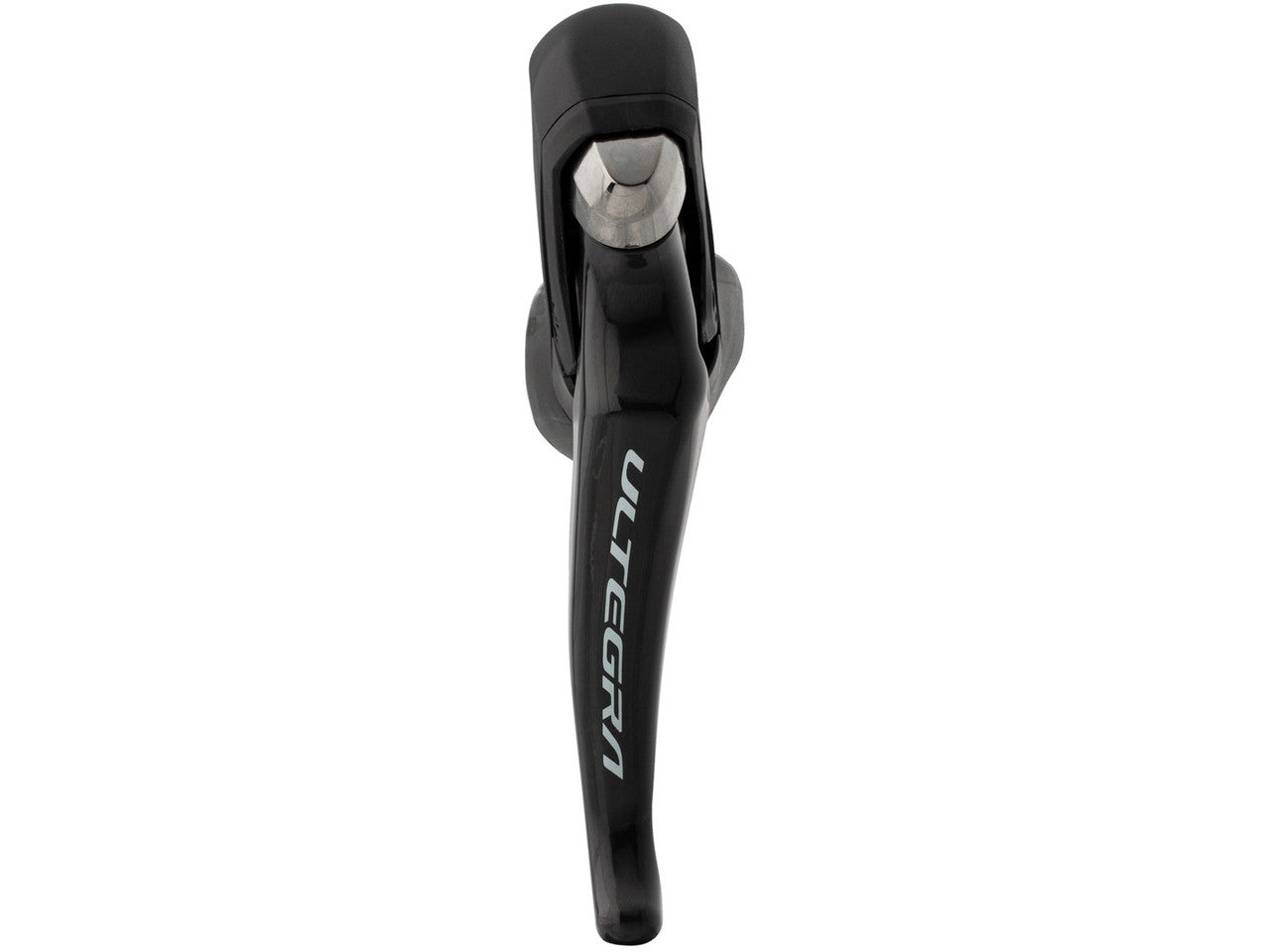

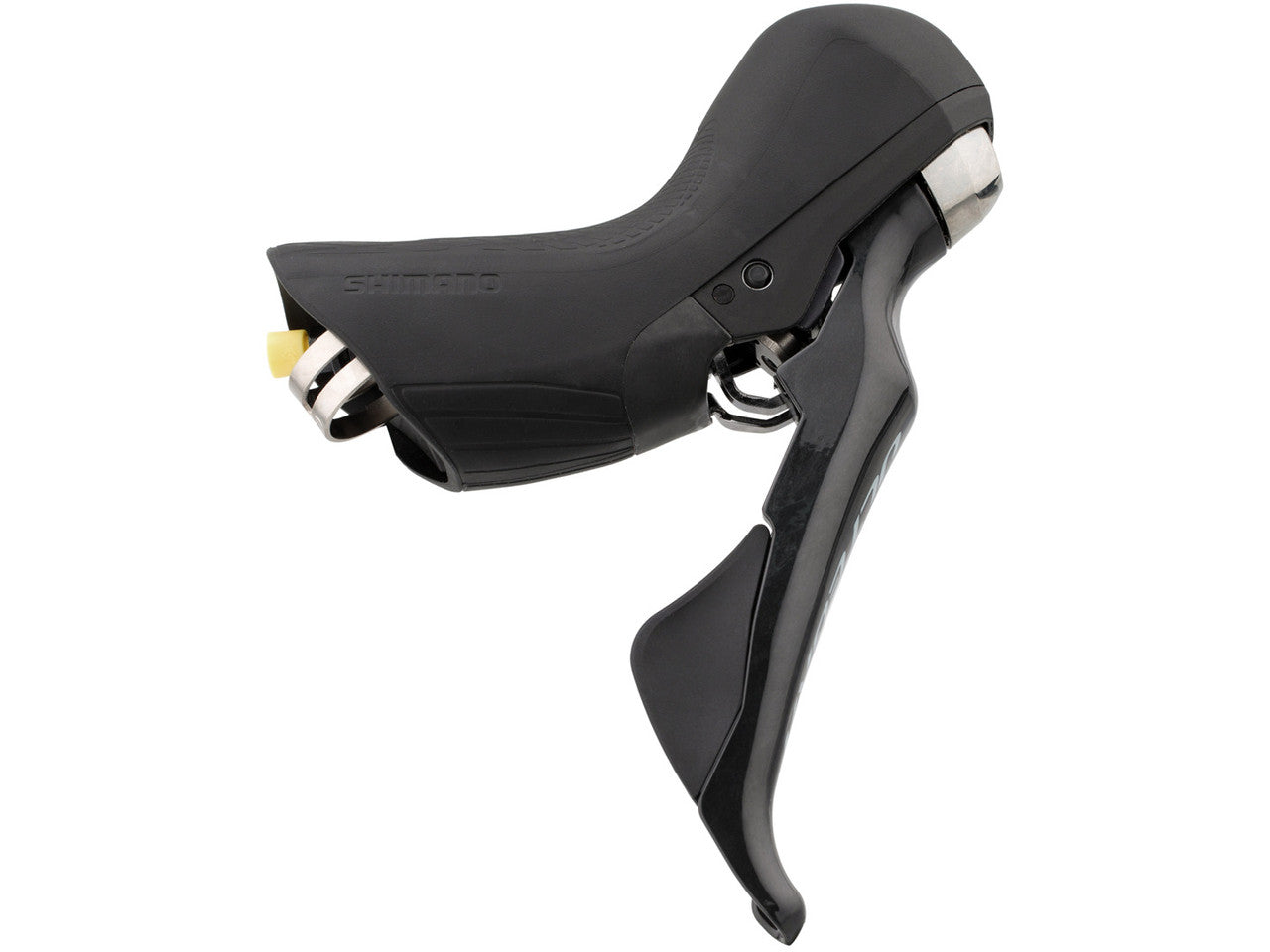

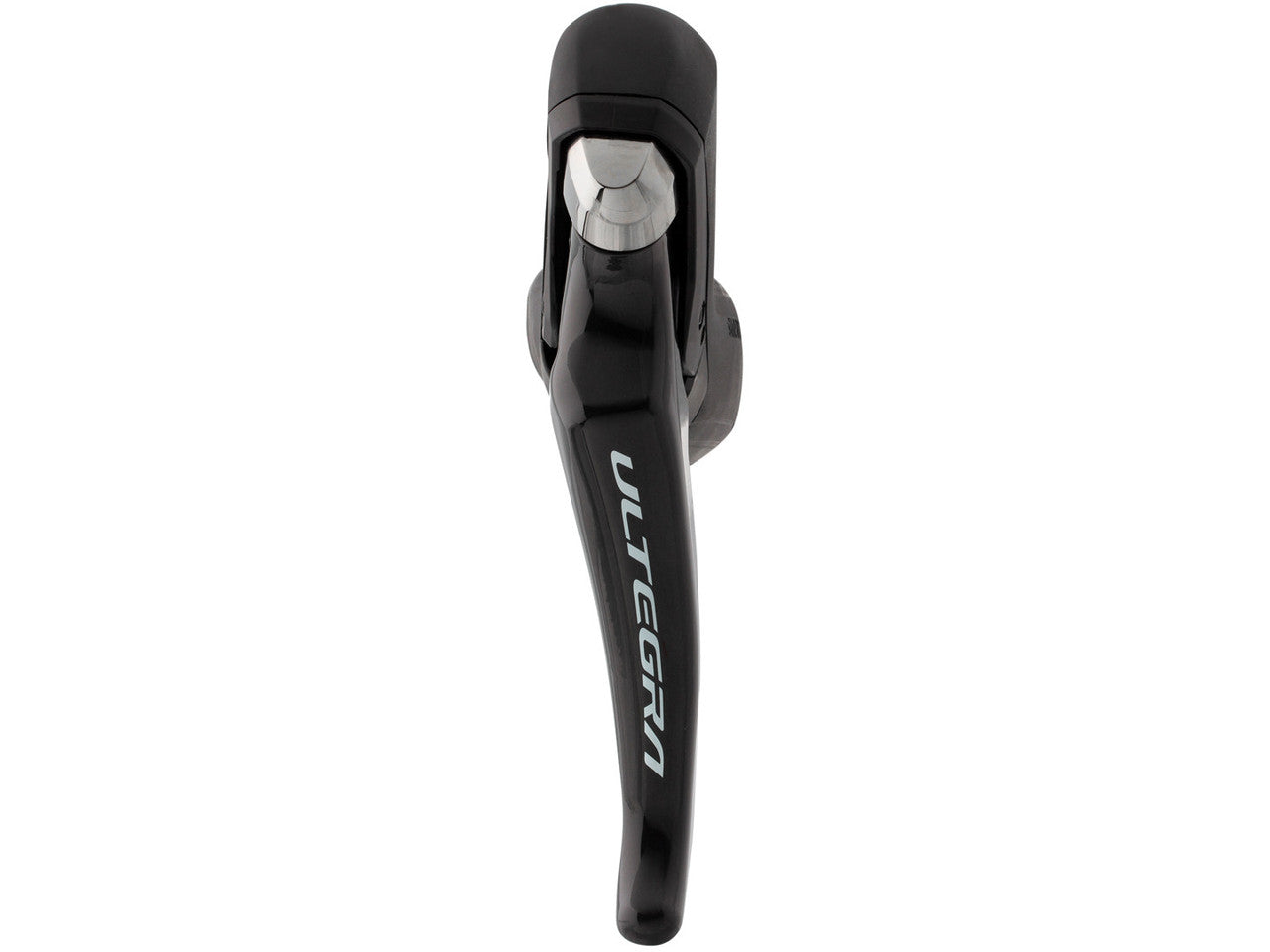

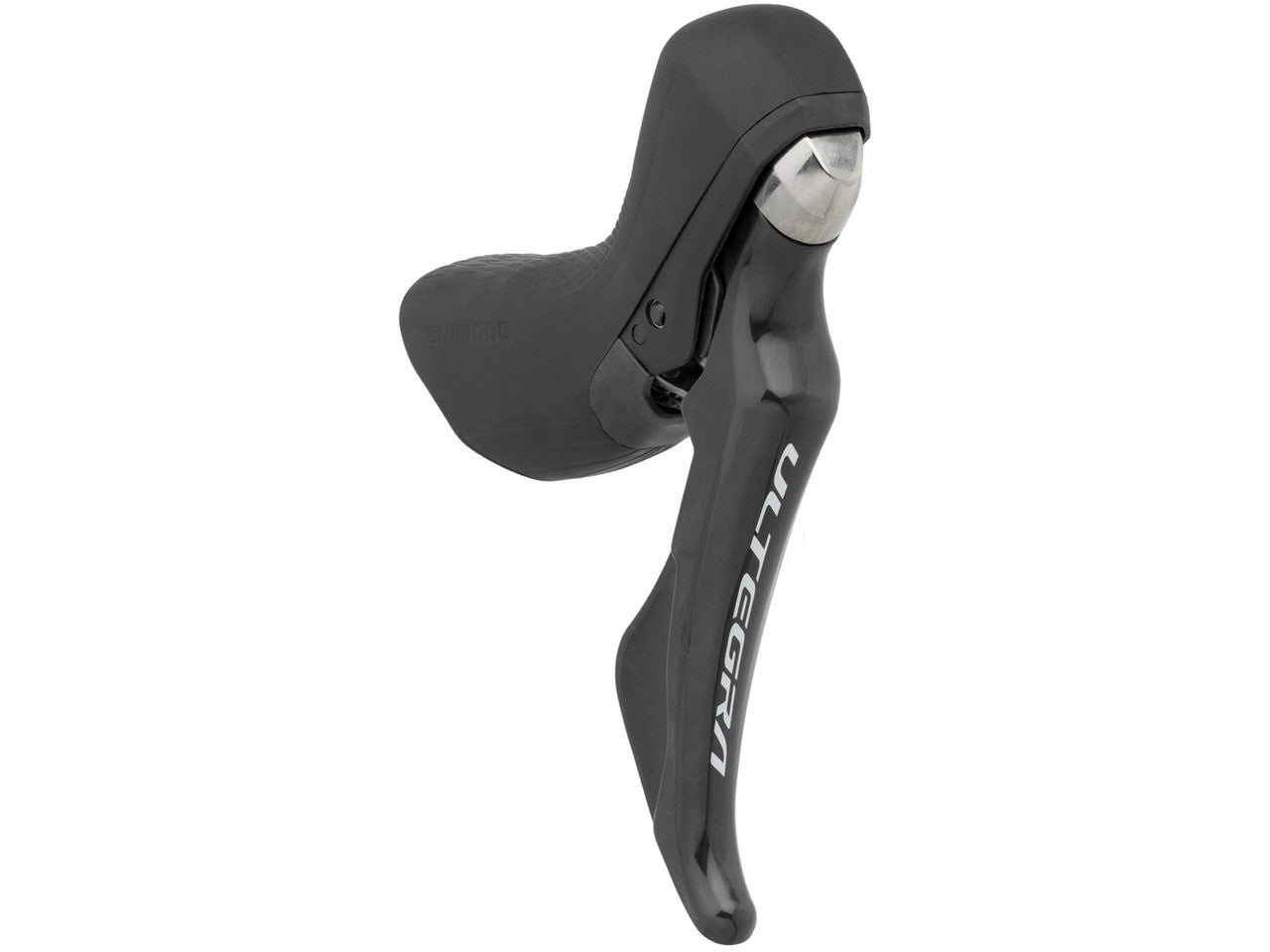

Shimano Ultegra Shift/Brake Lever - ST-R8020

The Ultegra ST-R8020 Shift/Brake Lever by Shimano - Improved ergonomics

The Shimano Ultegra ST-R8020 shift/brake lever offers fast, intuitive dual control shifting (2-speed or 11-speed) and hydraulic braking. As the inner shifting unit has been revised, the shifting process is now even easier, especially at the front. ST-R8020 also impresses with its reduced hydraulics, which leads to improved ergonomics and makes the outer appearance even more similar to that of a rim brake setup. The built-in Servo Wave function ensures optimum use of the brake lever travel. The Ultegra STI comes with a polymer-coated shift cable.

Specifications:

Series:

Ultegra R8000

Application:

Road, Cyclocross

Gearing:

2-speed, 11-speed

Shifting System:

mechanical

Brake Type:

hydraulic

Technical Information:

Brake Lever Material:

Composite

Lever Body Material:

Composite

Clamp Material:

steel

Hose:

SM-BH90-JK-SSR (not included)

Actuation:

mineral oil

Mount:

clamp (closed)

Reach Adjust:

bolt

Adjustment Options:

reach adjust, contact point

Compatibility:

Clamp Diameter:

23.8 - 24.2 mm

Front Derailleur:

FD-R9100, FD-R8000, FD-5801, FD-R7000, FD-9000, FD-6800, FD-5800, FD-U5000, FD-RX810

Crank:

FC-R9100, FC-R9100-P, FC-R8000, FC-R7000, FC-RS510, FC-9000, FC-6800, FC-5800, FC-RS500, FC-U5000-2, FC-RX810-2, FC-RX600-11

Rear Derailleur:

RD-R9100, RD-R8000, RD-RX800, RD-9000, RD-6800, RD-5800, RD-R7000, RD-U5000, RD-RX810

Cassette:

CS-R9100, CS-9000, CS-6800, CS-5800, CS-R8000, CS-HG800-11, CS-R7000, CS-HG700-11

Chain:

CN-9000, CN-6800, CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG500

Brake Caliper:

BR-R8070 (recommended), BR-R9170, BR-R9270, BR-R9170, BR-R8170, BR-R7170, BR-R7070, BR-RS785, BR-RX820-LE, BR-RX810, BR-RX400, BR-4770

Additional Brake Lever:

BL-RX812

Features:

• revised internal shift unit for fast, intuitive shifting
• extended reach adjustment
• in combination with FD-R8000 even easier front shifting
• reduced hydraulic inner workings to adjust the ergonomics of disc and rim brake builds
• max. number of gears per shift: 2 (main lever, rear)
• polymer-coated cable, OT-SP41 cable housings recommended
• straight hose connection
• funnel venting with M7 funnel (TL-BR002)
• shift lever made of resin/steel, main lever painted

Technology:

STI Dual Control
Shimano Total Integration (STI) means the combination of braking and shifting functions in one lever, which increases safety when riding. By refining the technology, it became possible to make shifting so smooth at the front and rear that they can be triggered with just one finger. Shimano calls such levers Dual Control Levers (DCL).

Servo Wave
Shimano Servo Wave technology optimises the travel of your brake levers. During the braking process, the brake pads are guided quickly to the brake rotor with very short lever travel. The greater part of the lever travel is reserved for the actual braking force. In this way, you can apply your braking power in a more targeted manner and use it more effectively.

Models:

2-speed:

Mount: left

Gearing: 2x

Manufacturer Number: I-STR8020LI

11-speed:

Mount :: right

Gearing: 11-speed

Manufacturer Number:b I-STR8020RI

Contents:

• 1 x Shimano Ultegra ST-R8020 shift/brake lever
• 1 x Shimano 1800 mm shifter cable or 2200 mm
