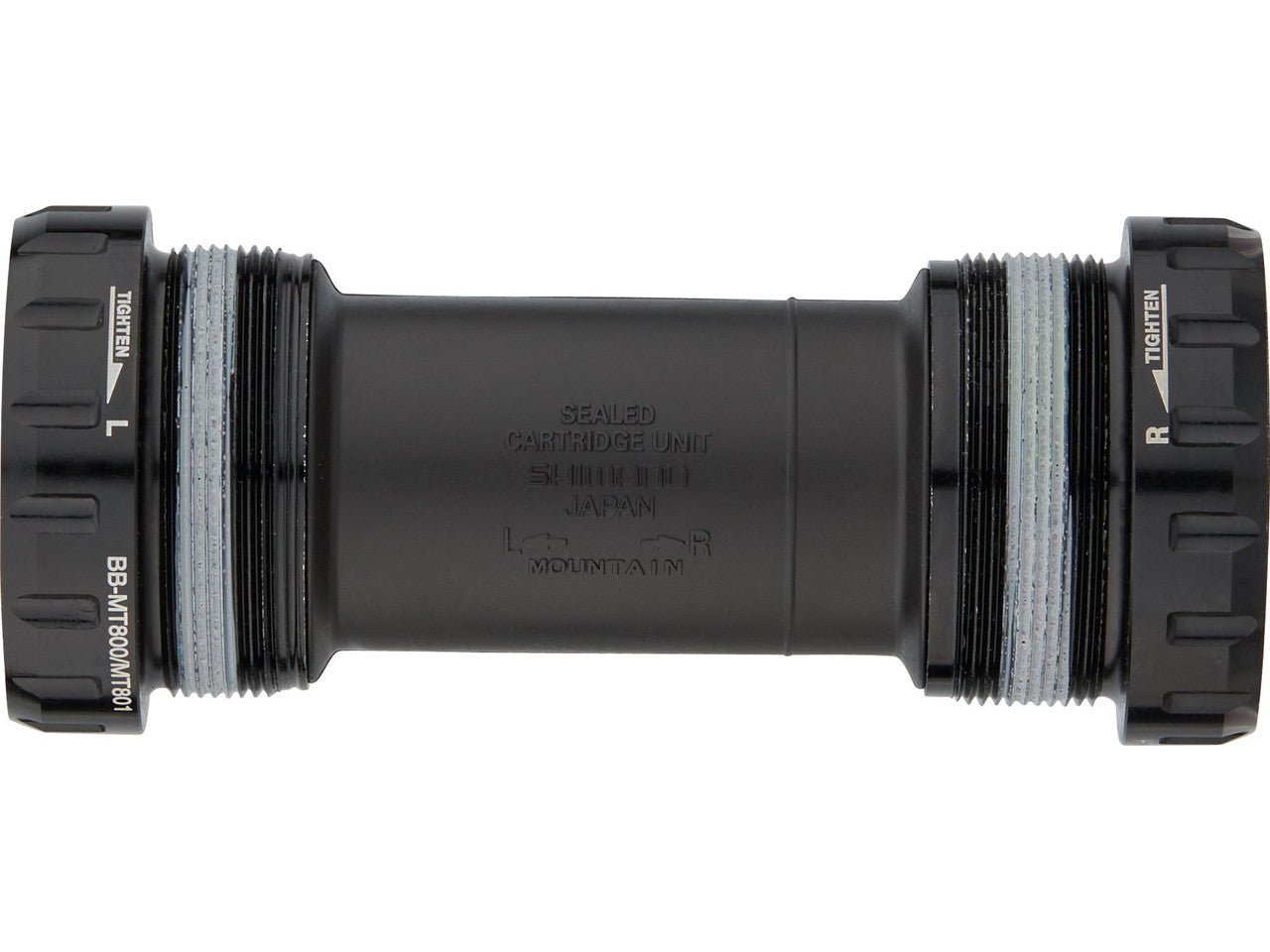

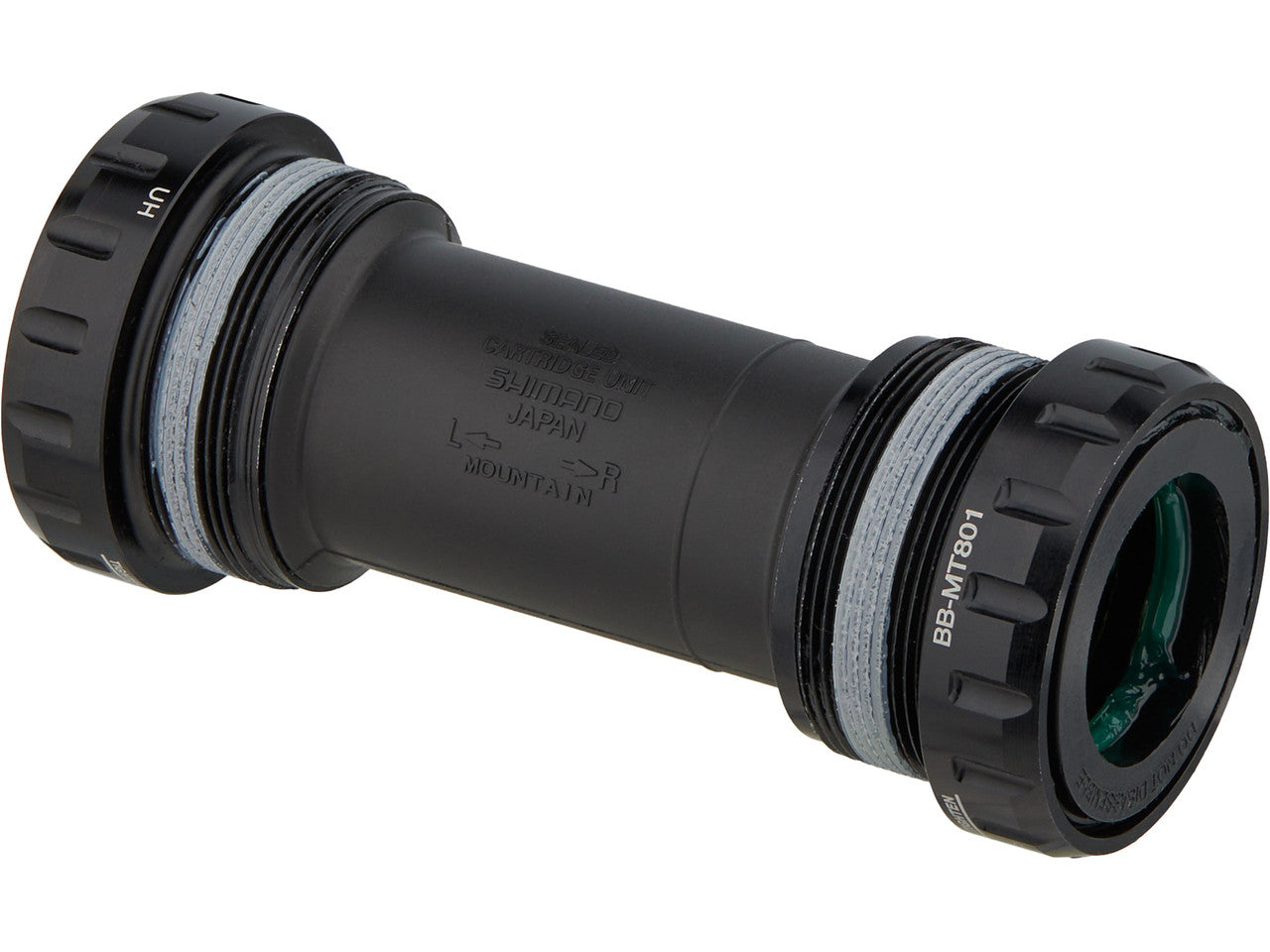

Shimano XT BB-MT801 Hollowtech II Bottom Bracket

Shimano XT / SLX BB-MT801 bottom bracket for frames with BSA thread

The Shimano BB-MT801 is an aluminium centre tube bottom bracket designed to fit a 24 mm axle crankset into a frame with a BSA bearing. With the enclosed spacers, it is suitable for shell width of both 73 mm and 68 mm. Shimano recommends the BB-MT801 for the cranksets of the XT and SLX series as well as for some no-group models from the MTB range. It features a high-quality, sealed steel bearing. The bearing cups are made of anodised aluminium. In combination with a corresponding crankset, this bottom bracket and its Hollowtech II technology ensures stability and efficiency with every pedal rotation.

Specifications:

Application:

Cross Country, All Mountain, Enduro, City & Touring

Type:

BSA

Shell Width:

68 mm / 73 mm

Axle Diameter:

24 mm (Hollowtech II)

Technical Information:

Bearings:

steel

Bottom Bracket Cup Material:

aluminium

Bottom Bracket Centre Tube Material:

aluminium

Compatibility:

Recommended for:

• XT FC-M8100, FC-M8120, FC-M8130
• SLX FC-M7100, FC-M7120, FC-M7130
• XT FC-M8000
• CUES FC-U8000
• FC-MT700, FC-MT600
• XT FC-T8000

Features:

• anodised bearing cups
• high-quality bearings
• sealed for long service life
• aluminium bottom bracket centre tube

Technology:

Hollowtech II
Shimano Hollowtech II is a crank bottom bracket system designed to achieve an ideal ratio of stiffness, weight and rotational efficiency. It is based on an integration of the bottom bracket and the right crank arm and works with a 24 mm axle or bearing diameter, which has proven to be optimal in terms of stability. In many cases, the bearing cups are on the outside so that the load is better distributed. High-quality precision seals ensure a long service life.

Manufacturer Number:

IBBMT801B

Contents:

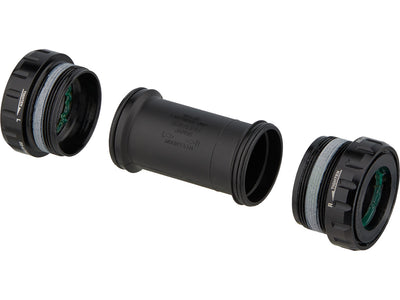

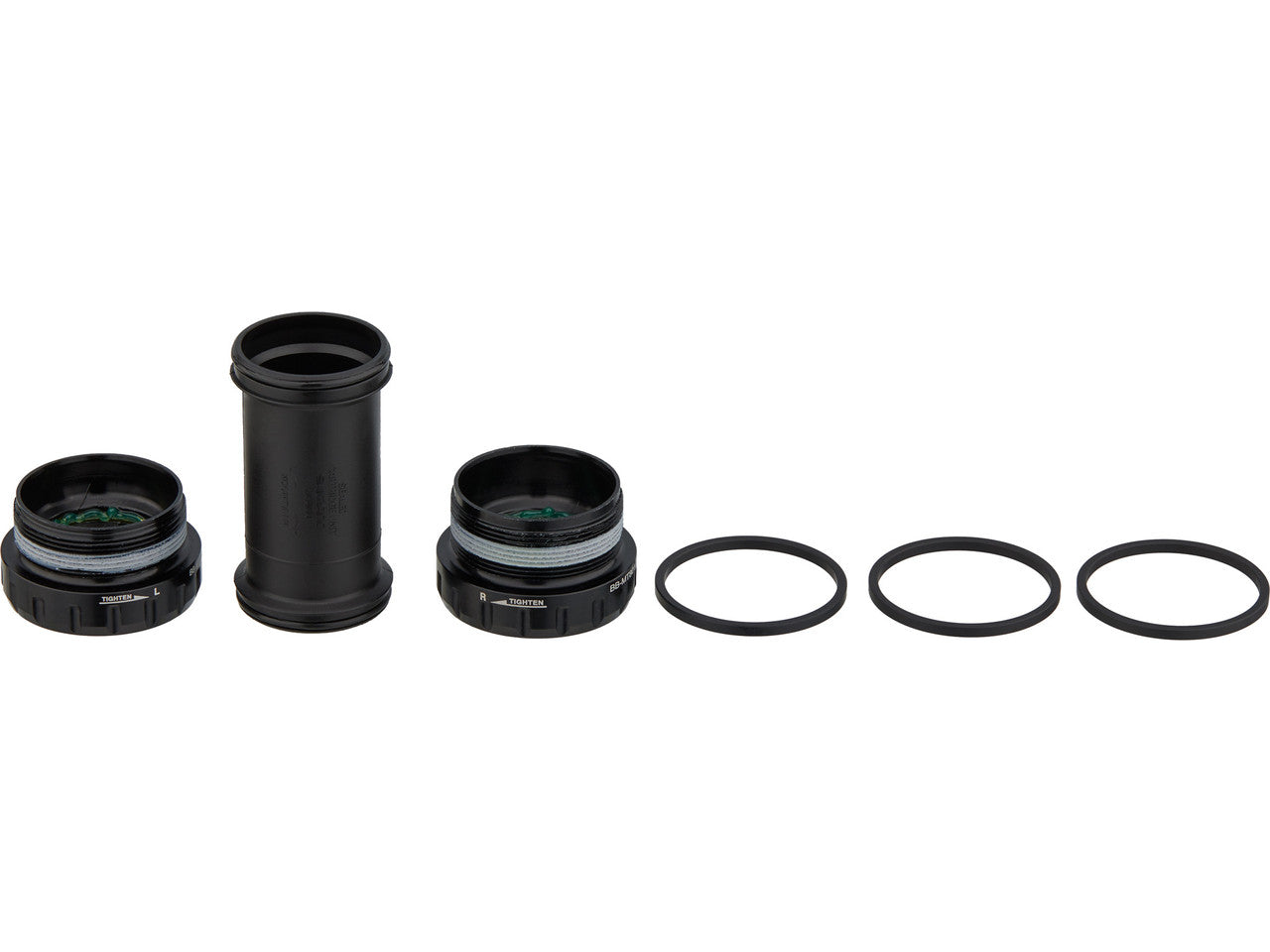

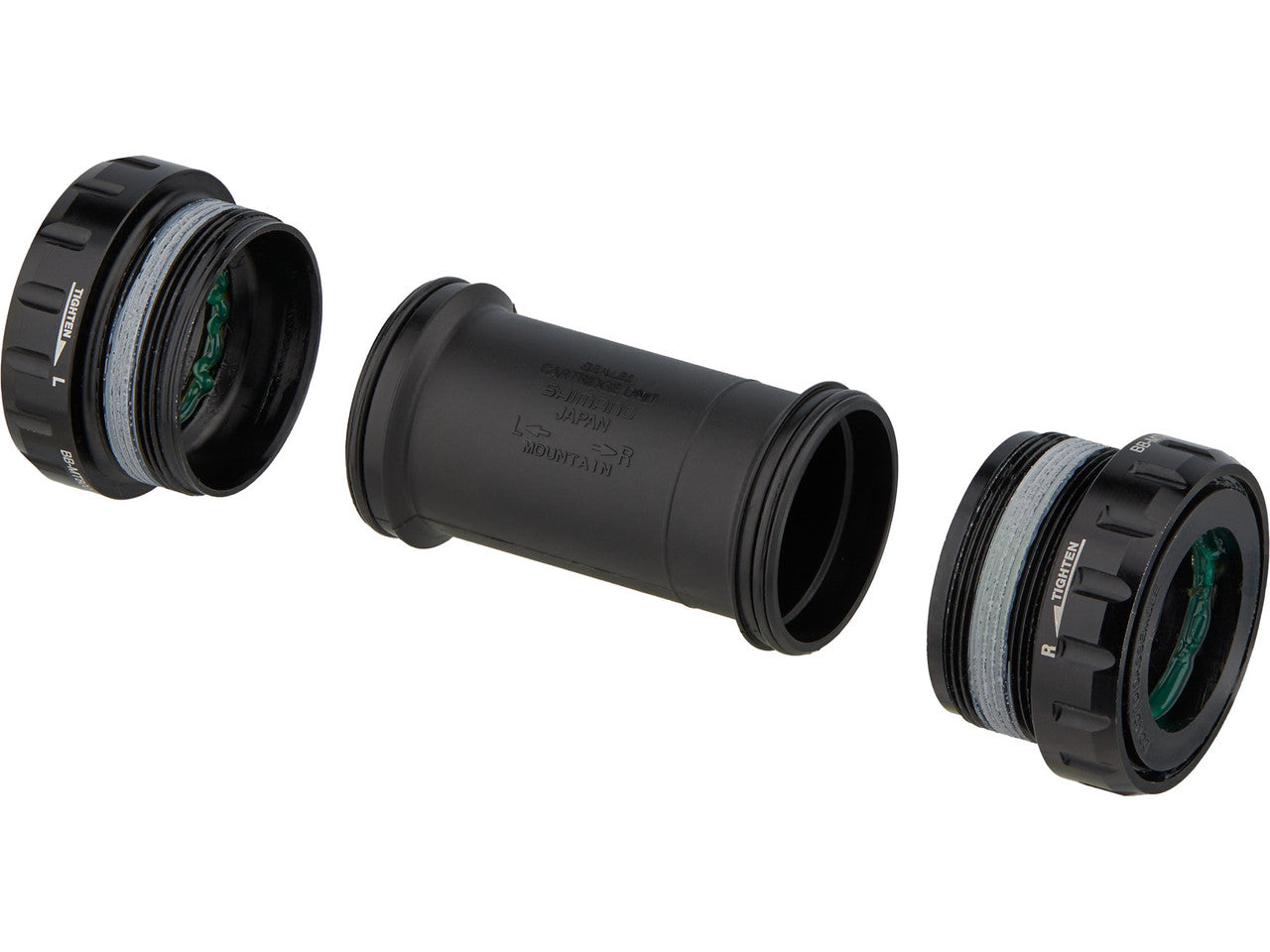

Shimano BB-MT801 bottom bracket, consisting of:

• 1 x right bearing cup with bearings
• 1 x left bearing cup with bearings
• 1 x bottom bracket centre sleeve
• 3 x spacer 2.5 mm

Weight:

• black: 84 g
