Jamis Trail X A1 MTB Bike (2021)

DIVIDECHAR17

Rs. 55,000.00 Rs. 38,500.00 Save 30%
/
Tax included. Shipping calculated at checkout.
banner
BIKE EXPERT
Whatsapp us at 8591220335 to get a call back from our bike expert.
Color
Size

THE TRAILS ARE CALLING

Building great recreational-level bikes that ride much like our high-end bikes is a passion at Jamis. No bikes showcase our commitment to do just that better than these. The Trail X chassis emphasizes all-day performance with quick, but not overly twitchy handling attributes. Make no mistake though, if you want to throw down they’re more than able to keep up.

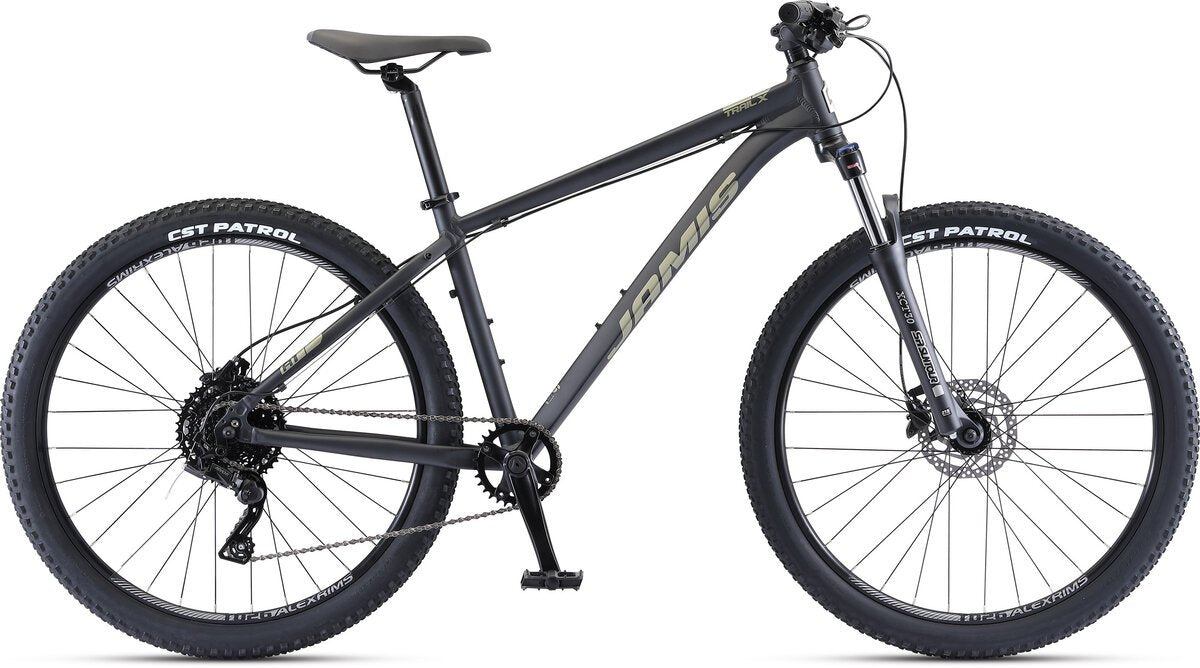

TRAIL X A1

  • 6061 aluminum frame
  • SR Suntour XCT 30 HLO 27.5”, coil spring, hydraulic speed lock out adjust, external preload adjustor
  • Alex TD26 27.5” rims, 32H, alloy disc hubs
  • microSHIFT Advent 9-speed drivetrain
  • Sealed cartridge bottom bracket
  • Shimano MT200 hydraulic disc brakes
  • Jamis XC alloy handlebar & stem
  • Jamis ATB Sport saddle

FRAME MATERIALS

Trail X features lightweight and strong 6061 series aluminum tubing, featuring over-sized & tapered tubing for increased frame stiffness.

SPECIFICATIONS

TRAIL X A1
Frame 6061 aluminum main tubes, over-sized seat tube, zero-stack head tube, over-sized stays, replaceable derailleur hanger
Fork SR Suntour XCT 30 HLO 27.5”, coil spring, hydraulic speed lock out adjust, external preload adjustor, 30mm stanchions, aluminum lowers, 100mm travel
Headset Zero-stack internal cup, 8mm cone spacer
Wheels Alex TD26 27.5” rims, 32H, alloy disc hubs, 14G nickel- plated spokes
Tires CST Patrol, 27.5 x 2.25”
Derailleurs microSHIFT Advent M6195M 9-speed
Shift levers microSHIFT Advent M8195, 1×9-speed
Chain KMC X9, 9-speed
Cassette microSHIFT H093, 9-speed, 11-42T
Crankset Forged Alloy, 32T
BB Set Sealed cartridge
Pedals MTB platform, hi-impact resin
Brakeset Shimano MT200 hydraulic disc, Shimano RT26 160mm rotors
Handlebar Jamis XC alloy riser, 31.8 x 20mm rise x 740mm
Stem Jamis XC alloy threadless, 31.8 x 3 ? rise x 60mm
Grips Kraton
Seat Post Jamis alloy micro-adjust, 31.6 x 350mm (15”) 400mm (17”-21”)
Saddle Jamis ATB Sport
Sizes 13”, 15”, 17”, 19”, 21”
Color Charcoal or Oxblood
Weight 31.5 lbs

FIT & SIZING

MODEL SIZE TT EFFECTIVE HT ANGLE ST ANGLE CHAINSTAY WHEELBASE BB DROP HEADTUBE STANDOVER
A1 13″ 21.9 / 555 68.5° 74° 17.1 / 435 42 / 1075 2.0 / 50 3.7 / 95 27.5 / 700
A1 15″ 23.3 / 585 68.5° 74° 17.1 / 435 44 / 1105 2.0 / 50 3.9 / 100 28.5 / 726
A1 17″ 24.0 / 610 68.5° 74° 17.1 / 435 45 / 1132 2.0 / 50 4.5 / 115 30.0 / 762
A1 19″ 25.0 / 635 68.5° 74° 17.1 / 435 46 / 1158 2.0 / 50 5.1 / 130 31.4 / 797
A1, A2 21″ 26.0 / 660 68.5° 74° 17.1 / 435 47 / 1184 2.0 / 50 5.5 / 140 32.7 / 831
