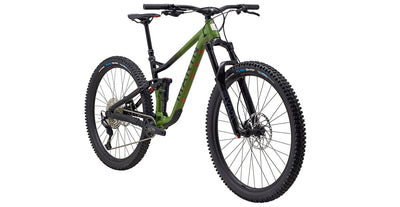

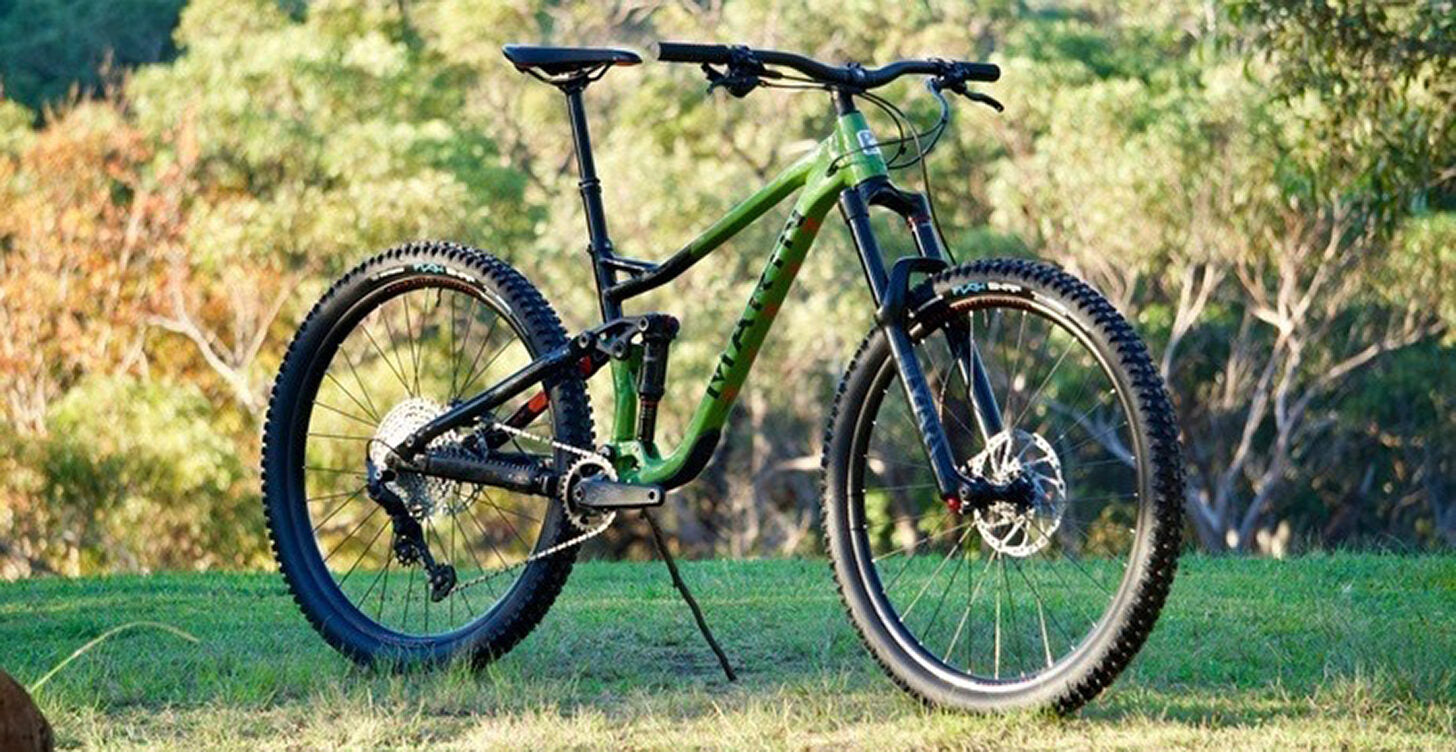

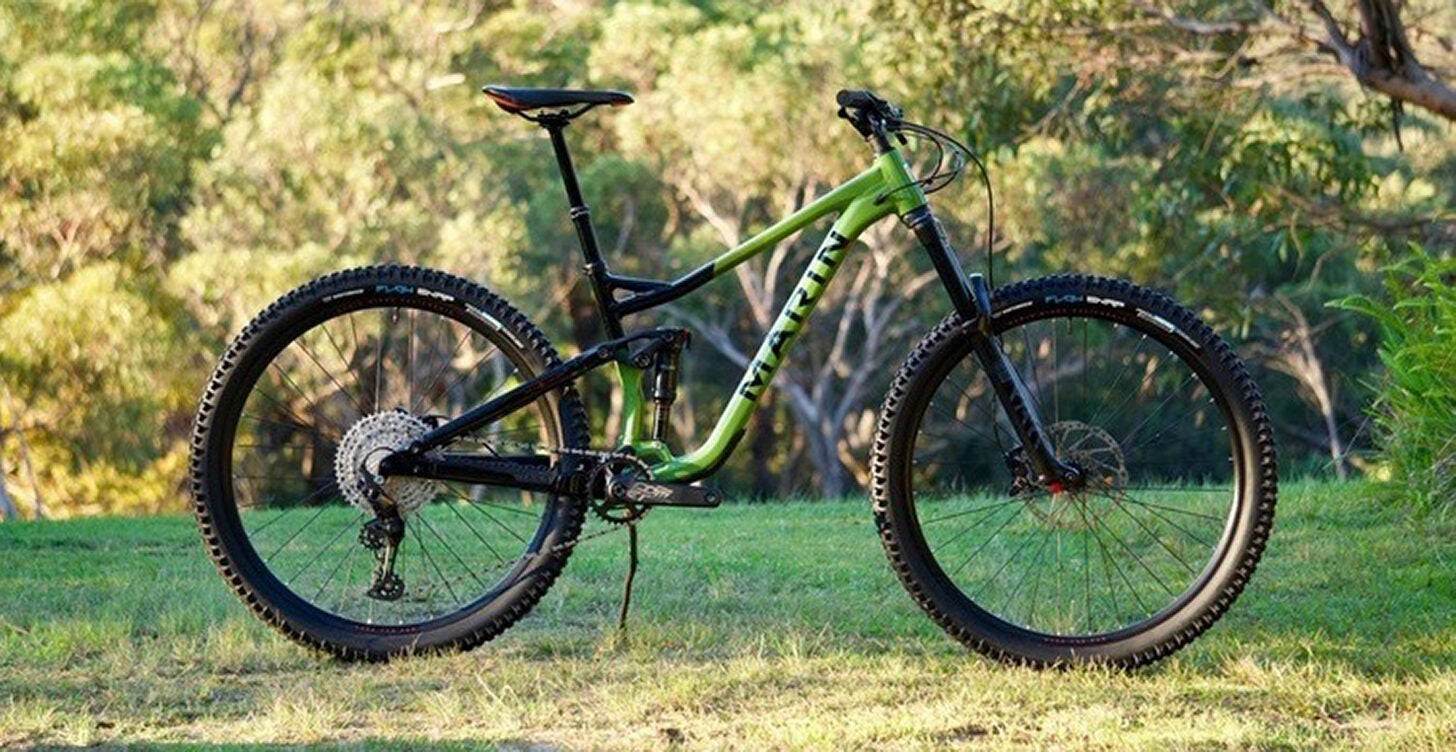

Marin Alpine Trail 7 MTB Bicycle

BIG ALL-MOUNTAIN DAYS WHERE TRAVEL AND GEOMETRY MATTER MOST

BUILT FOR ABUSE AND ROWDY RIDING

ENDURO-STYLE RIDING AND RACING

BIG BIKE, BIG WHEELS, BIG FUN

The Alpine Trail is a 29” wheeled full suspension bike built for the all day enduro rider that earns their downhill fun.

• SUSPENSION: RockShox Yari RC / Rock Shox Deluxe Select + RT
• WHEEL SIZE: 29"
• FRAME: Aluminum
• SIZE RANGE: S, M, L, XL

SPECIFICATIONS

• FRAME

  Series 4 6061 Aluminum Frame, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs

• FRONT SUSPENSION

  RockShox Yari RC, 29”, 160mm of Travel, Air Sprung, Debonair, Compression and Rebound Adjustment, Fast Black Stanchions, 110x15mm Maxle Stealth, 42mm Offset

• REAR SUSPENSION

  Rock Shox Deluxe Select + RT, Debonair Air Spring, 2 Position Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 25mmxM8 Lower Mount

• RIMS

  Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible

• HUB, REAR

  Shimano HB-MT410B, 148x12mm, Centerlock, Microspline Freehub Body

• HUB, FRONT

  Shimano HF-MT410B, 110x15mm, Centerlock

• SPOKE, NIPPLES

  14g Black Stainless Steel

• TIRES

  Vee Tire Flow Snap, 29x2.6”, Tackee Compound, 72 TPI, Tubeless Compatible

• DERAILLEUR, REAR

  Shimano Deore, 12-Speed, SGS

• SHIFT LEVER

  Shimano Deore, 12-Speed, SL6100-IR

• CRANKSET

  FSA Comet Heavy Duty, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing

• BOTTOM BRACKET

  Mega EXO 73mm BSA

• CHAIN

  KMC X-12 Silver and Black

• CASSETTE

  Shimano, Deore M6100 12-Speed, 10-51T

• BRAKE, FRONT

  Shimano BR-MT420, 4-Piston Hydraulic Disc Brake, 203mm Rotor

• BRAKE, REAR

  Shimano BR-MT420, 4-Piston Hydraulic Disc Brake, 180mm Rotor

• BRAKE LEVERS

  Shimano BL-M4100 Hydraulic Lever, I-Spec EV Compatible

• HANDLEBAR

  Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

• STEM

  Marin 3D Forged Alloy, 35mm

• GRIPS

  Marin Single Clamp Locking

• HEADSET

  FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

• SEATPOST

  TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 175mm Travel, 30.9mm

• SADDLE

  Marin Speed Concep

• EXTRAS

  Bolt-On Thru-Axle

• EXTRAS

  Downtube Protector

Specifications, pricing, and availability are subject to change without notice.

TECHNOLOGY

UNIDIRECTIONAL CARBON FIBER FRAME

Alpine Trail Carbon 1 and 2 models feature high modulus carbon fiber and monocoque construction to deliver the strongest and stiffest Alpine Trail to date.

SERIES 4 ALUMINUM FRAME

Alpine Trail models feature Series 4 aluminum frames, with detailed forgings, highly manipulated tubes, and full internal cable routing, giving the rider the highest-end alloy frame that Marin offers.

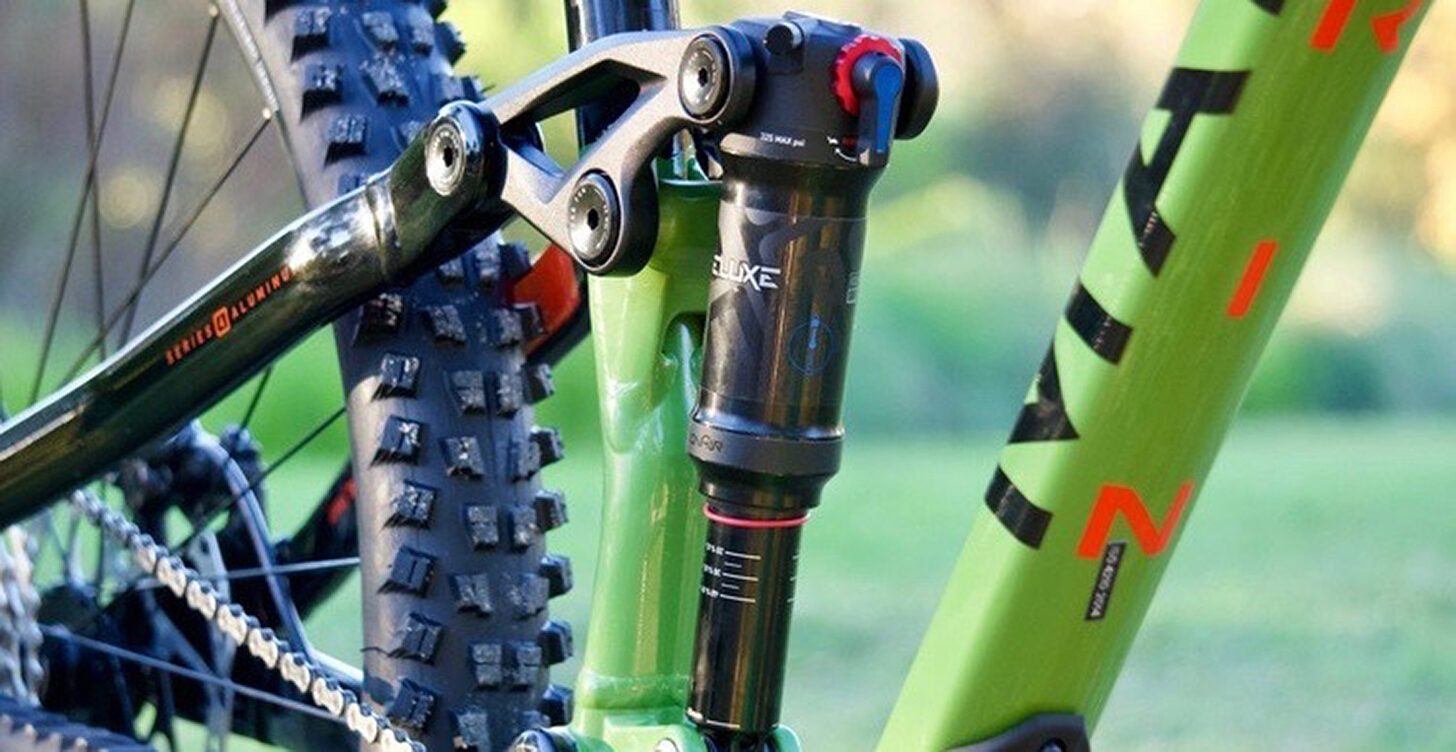

ONE PIECE FORGED ROCKER

The heart of the Alpine Trail’s MultiTrac suspension is the forged one-piece rocker link. The strength and stiffness of the rocker keeps the rear of the bike tracking straight, providing smooth suspension operation under the most demanding conditions.

BRIDGELESS SEATSTAY

The stiffness of the one-piece rocker link allows for a bridgeless seatstay design, offering zero compromises on stiffness while at the same time allowing for maximum tire clearance and short chainstays.

MODERN ANGLES

The Alpine Trail has a slack 63.5º head tube angle paired with a steep 78º seat tube angle and long reach to provide the best modern trail bike experience. The bike lets you climb better than ever before, while giving you even more confidence when descending.
