Shimano Dura-Ace SMBB-9241B Road Bottom Bracket (Black) (BB86) (24mm Spindle)
ISMBB9241B

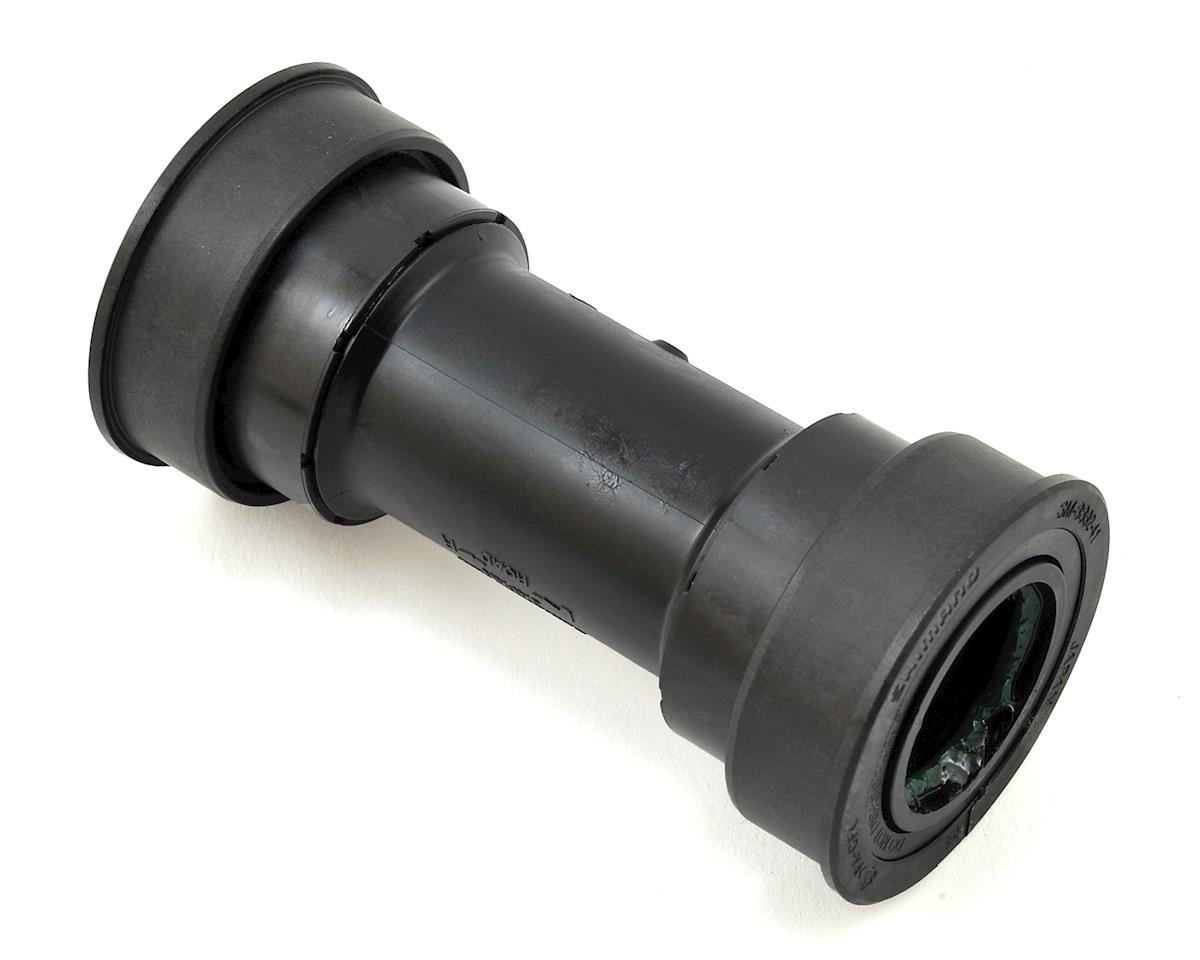

The bottom bracket SM-BB92-41B from Shimano - For press fit installation
Shimano SM-BB92-41B is a bottom bracket for press fit mounting of Hollowtech II cranks into a road frame with 86.5 mm bottom bracket shell. Hollowtech II means an axle diameter of 24 mm, which benefits stiffness and load capacity. Use this bottom bracket, which is characterised by its weight-saving ability and small ball bearings, in combination with a Dura Ace 11-speed crank.Specifications:
Application: Road, Triathlon & Time TrialType: Press Fit BB86
Shell Diameter: 41 mm
Shell Width: 86.5 mm
Axle Diameter: 24 mm (Hollowtech II)
Technical Information:
Bearings: SteelBottom Bracket Cup Material: synthetic resin
Compatibility:
Recommended for:- Dura Ace FC-9000, FC-R9100, FC-R9100-P
Features:
- small ball bearings for low weightTechnology:
Hollowtech IIShimano Hollowtech II is a crank bottom bracket system designed to achieve an ideal ratio of stiffness, weight and rotational efficiency. It is based on an integration of the bottom bracket and the right crank arm and works with a 24 mm axle or bearing diameter, which has proven to be optimal in terms of stability. In many cases, the bearing cups are on the outside so that the load is better distributed. High-quality precision seals ensure a long service life.
Manufacturer Part Number:
I-SMBB9241BContents:

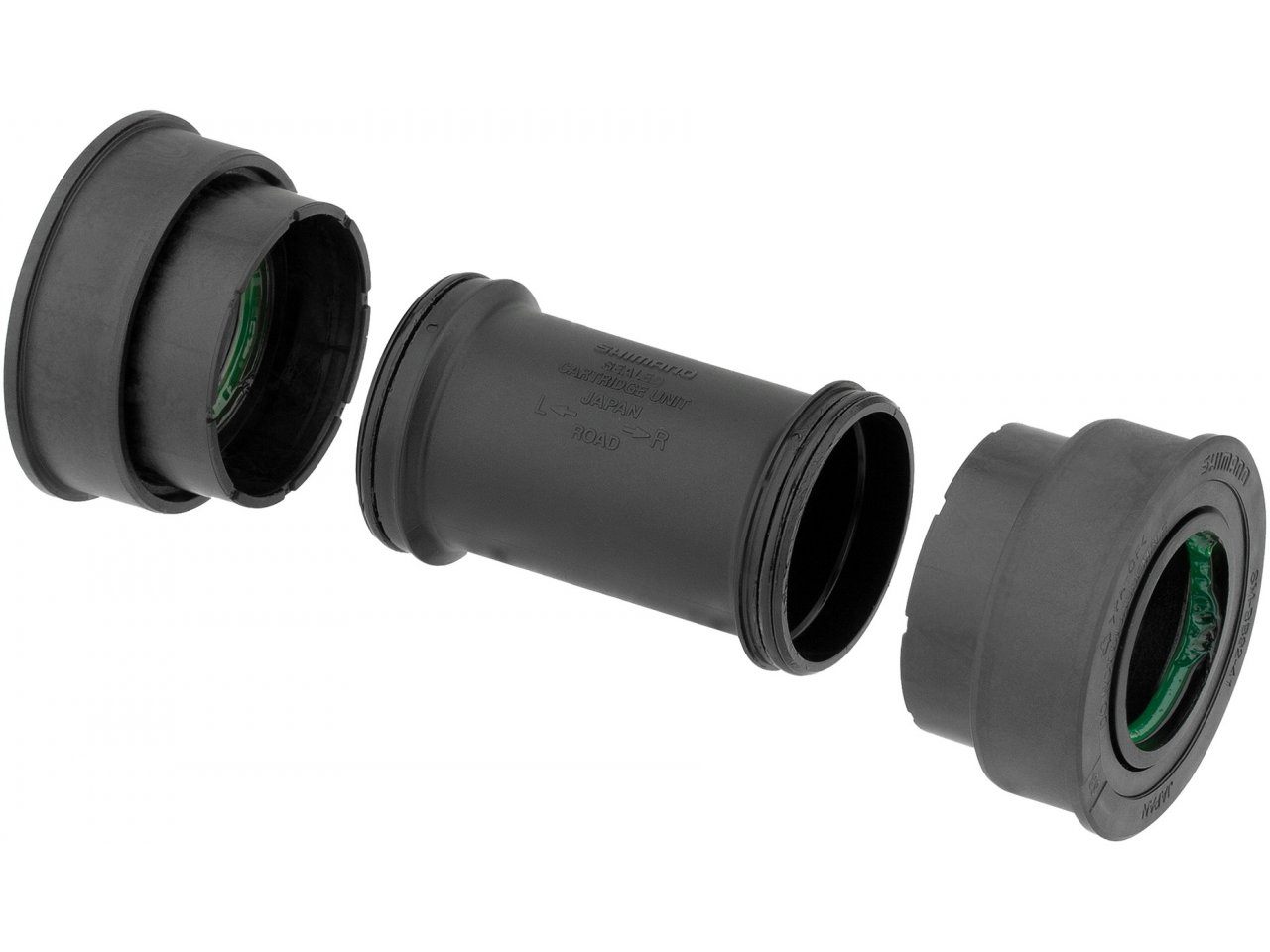

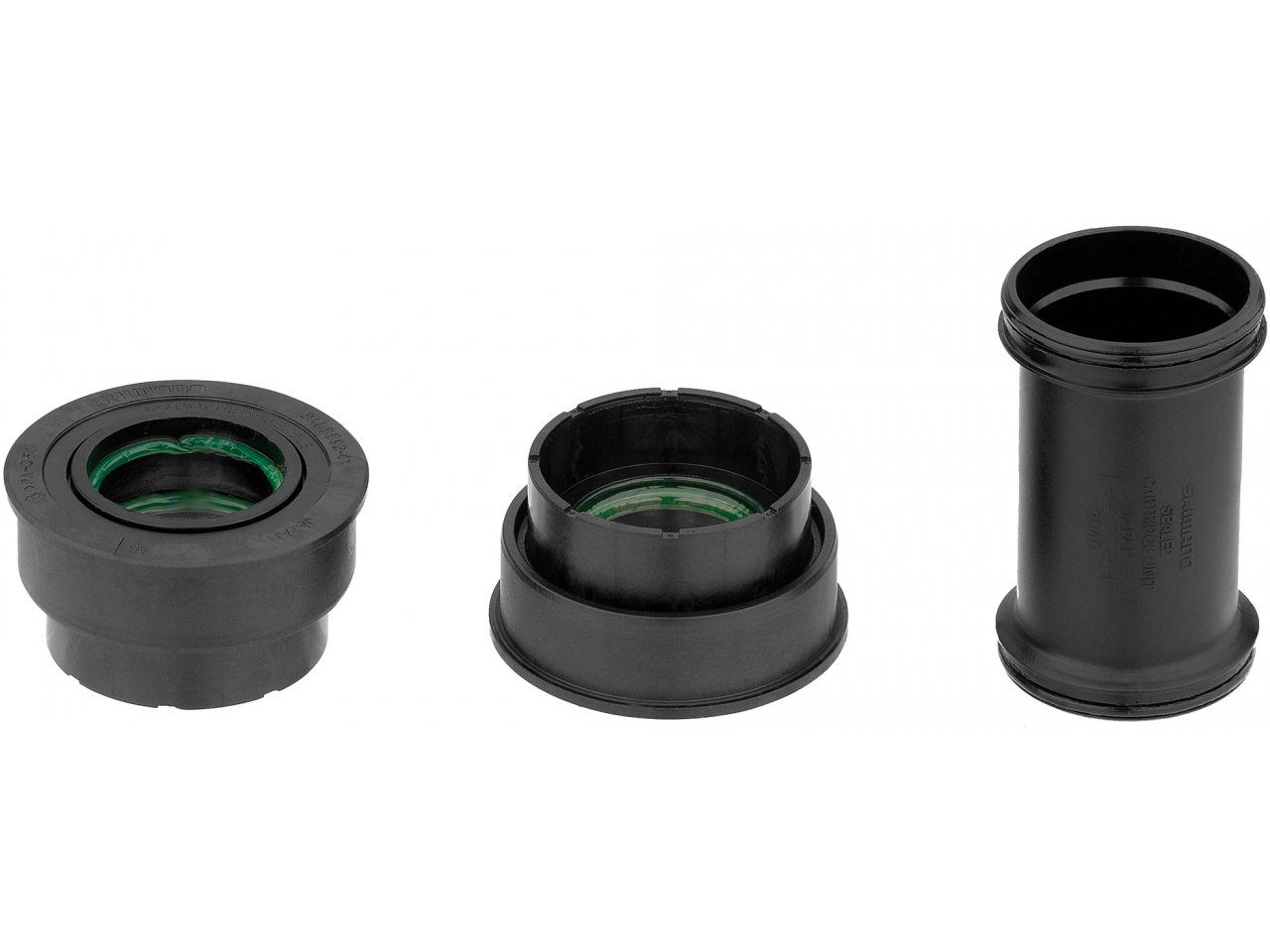

- 1 x Shimano SM-BB92-41B right bearing cup, with bearings- 1 x Shimano SM-BB92-41B left bearing cup, with bearings
- 1 x Shimano bottom bracket sleeve
Gewicht:
- black/Pressfit: 54 g
