Shimano FD-4703 Tiagra Front Derailleur - (3 x 10 Speed) - Cyclop.in

Shimano FD-4703 Tiagra Front Derailleur - (3 x 10 Speed)

Name: Shimano FD-4703 Tiagra Front Derailleur - (3 x 10 Speed)
Brand: Shimano
SKU: IFD4703F
Price: 1250.00 INR
Availability: OutOfStock

IFD4703F

Rs. 2,500.00 Rs. 1,250.00 Save 50%

Tax included. Shipping calculated at checkout.

Shipping Estimate

Expected delivery between Tuesday, April 8 and Tuesday, April 15

Mount

Braze-On

28.6/31.8mm

34.9mm

Add to Wishlist

10

[{"id":39420575875138,"title":"Braze-On","option1":"Braze-On","option2":null,"option3":null,"sku":"IFD4703F","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Shimano FD-4703 Tiagra Front Derailleur - (3 x 10 Speed) - Braze-On","public_title":"Braze-On","options":["Braze-On"],"price":125000,"weight":0,"compare_at_price":250000,"inventory_management":"shopify","barcode":"4524667330097","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39420575907906,"title":"28.6\/31.8mm","option1":"28.6\/31.8mm","option2":null,"option3":null,"sku":"IFD4703BSM","requires_shipping":true,"taxable":true,"featured_image":{"id":28254730780738,"product_id":6613076901954,"position":2,"created_at":"2021-07-21T12:48:42+05:30","updated_at":"2022-09-06T14:25:13+05:30","alt":"Shimano FD-4703 Tiagra Front Derailleur - (3 x 10 Speed) - Cyclop.in","width":475,"height":380,"src":"\/\/www.cyclop.in\/cdn\/shop\/products\/ifd4703bsm.jpg?v=1662454513","variant_ids":[39420575907906]},"available":false,"name":"Shimano FD-4703 Tiagra Front Derailleur - (3 x 10 Speed) - 28.6\/31.8mm","public_title":"28.6\/31.8mm","options":["28.6\/31.8mm"],"price":133500,"weight":0,"compare_at_price":267000,"inventory_management":"shopify","barcode":"4524667330103","featured_media":{"alt":"Shimano FD-4703 Tiagra Front Derailleur - (3 x 10 Speed) - Cyclop.in","id":20559117320258,"position":2,"preview_image":{"aspect_ratio":1.25,"height":380,"width":475,"src":"\/\/www.cyclop.in\/cdn\/shop\/products\/ifd4703bsm.jpg?v=1662454513"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39420575940674,"title":"34.9mm","option1":"34.9mm","option2":null,"option3":null,"sku":"IFD4703BL","requires_shipping":true,"taxable":true,"featured_image":{"id":28254730813506,"product_id":6613076901954,"position":3,"created_at":"2021-07-21T12:48:48+05:30","updated_at":"2022-09-06T14:25:13+05:30","alt":"Shimano FD-4703 Tiagra Front Derailleur - (3 x 10 Speed) - Cyclop.in","width":475,"height":380,"src":"\/\/www.cyclop.in\/cdn\/shop\/products\/ifd4703bl.jpg?v=1662454513","variant_ids":[39420575940674]},"available":false,"name":"Shimano FD-4703 Tiagra Front Derailleur - (3 x 10 Speed) - 34.9mm","public_title":"34.9mm","options":["34.9mm"],"price":283000,"weight":0,"compare_at_price":283000,"inventory_management":"shopify","barcode":"4524667330066","featured_media":{"alt":"Shimano FD-4703 Tiagra Front Derailleur - (3 x 10 Speed) - Cyclop.in","id":20559117353026,"position":3,"preview_image":{"aspect_ratio":1.25,"height":380,"width":475,"src":"\/\/www.cyclop.in\/cdn\/shop\/products\/ifd4703bl.jpg?v=1662454513"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

The Tiagra front derailleur FD-4703 by Shimano - for smooth front shifting

The Shimano Tiagra front derailleur FD-4703 can be used for three chainrings, the largest of which may have 50 teeth. In combination with a 10-speed rear derailleur, this results in a smooth and reliable shifting function on a Road or City bike. The front derailleur is compatible with modern HG-X Mountain bike chains, which are guided very safely thanks to the fine tuning. The parallelogram is made of light aluminium, the cage plates are made of steel. The FD-4703 is available for clamp and braze-on mounting.

Specifications:

Series: Tiagra 4700
Application: Road, City
Gearing: 3x (combined with 10-speed)
Chainstay Angle: 63-66°
Chainline: 45 mm
Chainring Size (max.): 50 tooth
Capacity: 20 teeth
Difference Between Large & Middle Chainring: 11 teeth
Cable Routing: down pull
Movement: down-swing
Mount: braze-on, clamp
Clamp Diameter: 31.8 mm (28.6 mm with adapter), 34.9 mm
Compatibility: HG-X chains, CN-HG500 chain

Technical Information:

Outer Body Material: aluminium
Inner Body Material: aluminium
Cage Material: steel

Features:

- smooth and stable front gear shifting
- smooth-running
- more ergonomic operation
- less risk of the chain dropping
- finer L-trim and low-position
- special chain guide and chainring shape with HG-X chain
- support screw increases stability (braze-on version)
- painted parallelogram, chrome-plated cage plates

Note: The Tiagra front derailleur FD-4703 is not compatible with older 10-speed shift/brake levers, only with ST-4703 and SL-4703.

Models:

braze-on:
Mount: braze-on
Type: FD-4703-F
Manufacturer Part Number: I-FD4703F

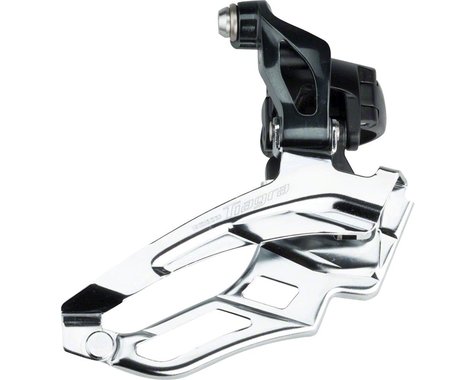

31.8 mm:
Mount: clamp (31.8 mm diameter; 28.6 mm w/ adapter)
Type: FD-4703-B
Manufacturer Part Number: I-FD4703BSM

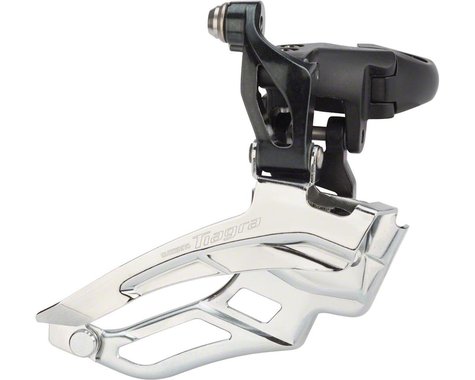

34.9 mm:
Mount: clamp ( 34.9 mm diameter)
Type: FD-4703-B
Manufacturer Part Number: I-FD4703BL
