Shimano XTR SM-MA90 Disc Brake Adapters - F160P/S
ISMMA90F160PS
Post-Mount to IS International Standard, with caliper type Post Mount, brake caliper mount 74 mm Post , and frame/fork mount 51 mm IS Front Adaptor to use a Postmount brake in combination with a IS2000 Mount.

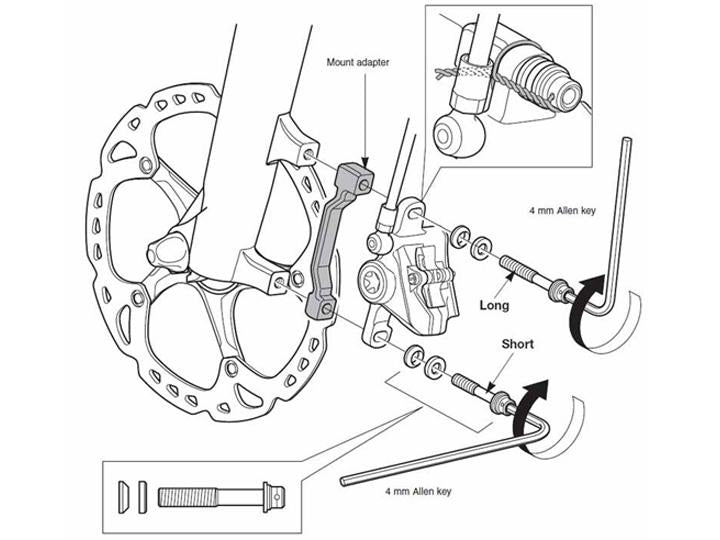

The included wire is used to fix the screw. The adapter can be used as follows:

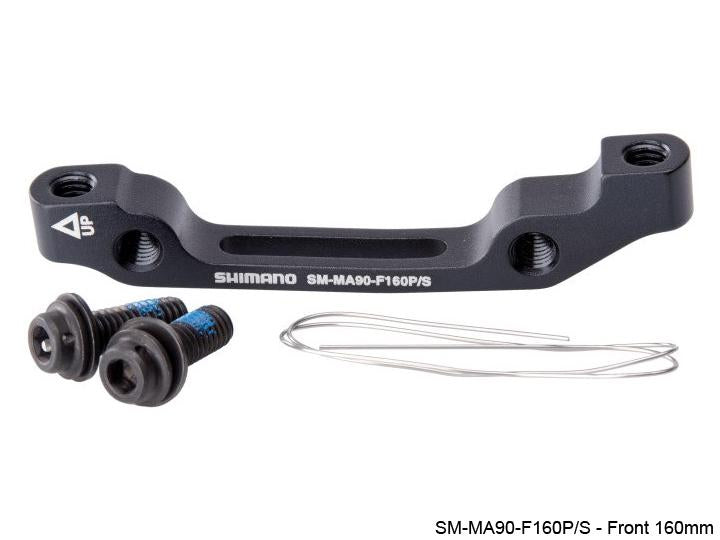

- Fork with 160 mm mount: SM-MA-F160P/S2 for the use of a 160 mm brake disc

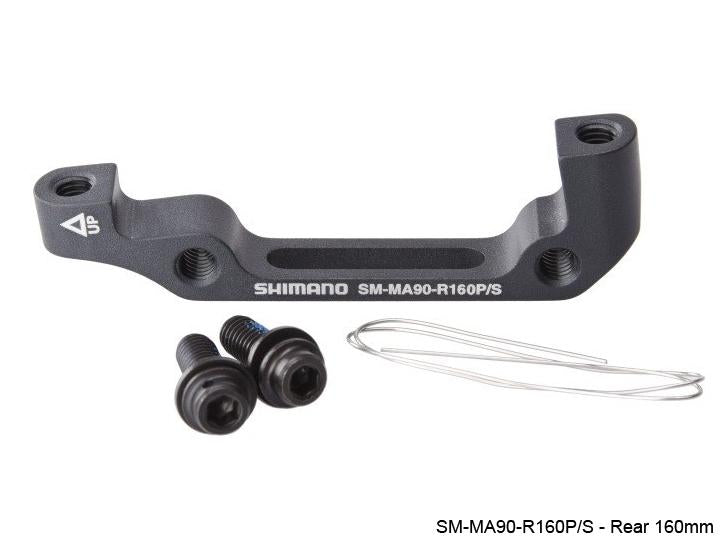

- Frame with 140 mm mount: SM-MA90-R160P/S for the use of a 160 mm brake disc
Features
- SM-MA90 series brackets are specifically designed for the new generation XTR-M985/988 disc brakes but can be used on all Shimano 74mm-caliper brakes
- These new adaptors are lighter, optimally machined, and even have areas drilled out to save weight
- Shimano Adapters are listed by: Rotor Size / Caliper Mount / Front or Rear / Bike Mount Tab / Mfg Part Number
Specifications:
- For instance a 160mm / 74mm / Front / 51mm IS / SM-MA-F160P/S
- Rotor Size = 160mm
- Caliper mount drill = 74mm
- Bike location = Front
- Mount on bike or fork = 51mm IS
- Shimano's part number = SM-MA-F160P/S
Warranty Information
- 3 Years Warranty on Dura-Ace and XTR Components
- 2 Years Warranty on all other Shimano Components
- 1 Year Warranty on all Shimano footwear, clothing and wheels
